Sets the value of an existing typed parameter on a gate. More...

#include </home/runner/work/hal/hal/plugins/gui/include/gui/user_action/action_set_parameter_value.h>

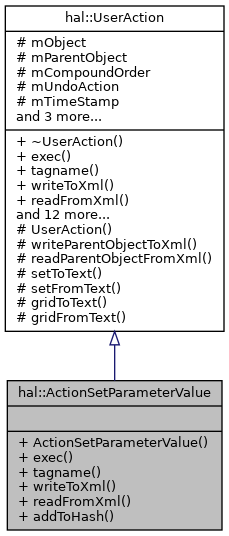

Inheritance diagram for hal::ActionSetParameterValue:

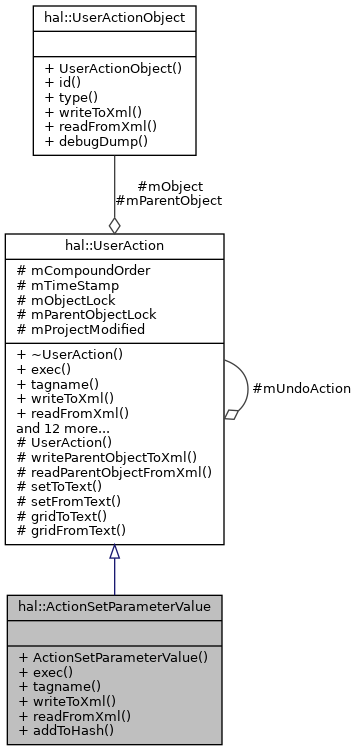

Collaboration diagram for hal::ActionSetParameterValue:

Public Member Functions
	ActionSetParameterValue (const QString &parameterName=QString(), const QString &value=QString())

bool	exec () override

QString	tagname () const override

void	writeToXml (QXmlStreamWriter &xmlOut) const override

void	readFromXml (QXmlStreamReader &xmlIn) override

void	addToHash (QCryptographicHash &cryptoHash) const override

Public Member Functions inherited from hal::UserAction
virtual	~UserAction ()

virtual UserActionObject	object () const

virtual void	setObject (const UserActionObject &obj)

int	compoundOrder () const

void	setCompoundOrder (int cmpord)

qint64	timeStamp () const

QString	cryptographicHash (int recordNo) const

UserAction *	undoAction () const

QString	debugDump () const

void	setObjectLock (bool lock)

void	setParentObjectLock (bool lock)

bool	hasProjectModified () const

Additional Inherited Members
Protected Member Functions inherited from hal::UserAction
	UserAction ()

void	writeParentObjectToXml (QXmlStreamWriter &xmlOut) const

void	readParentObjectFromXml (QXmlStreamReader &xmlIn)

Static Protected Member Functions inherited from hal::UserAction
static QString	setToText (const QSet< u32 > &set)

static QSet< u32 >	setFromText (const QString &s)

static QString	gridToText (const QHash< hal::Node, QPoint > &grid)

static QHash< hal::Node, QPoint >	gridFromText (const QString &txt)

Protected Attributes inherited from hal::UserAction
UserActionObject	mObject

UserActionObject	mParentObject

int	mCompoundOrder

UserAction *	mUndoAction

qint64	mTimeStamp

bool	mObjectLock

bool	mParentObjectLock

bool	mProjectModified

Detailed Description

Sets the value of an existing typed parameter on a gate.

Unlike ActionSetObjectData, a gate's parameters are fixed by its type: they can only be modified, never created, deleted or moved. This action therefore only carries the parameter name and the new value; the target gate is identified by the inherited mObject.

The inverse of "set parameter <name> to <value>" is another ActionSetParameterValue that restores the previous value, so exec() builds its own undo action of the same type.

Definition at line 42 of file action_set_parameter_value.h.

Constructor & Destructor Documentation

◆ ActionSetParameterValue()

hal::ActionSetParameterValue::ActionSetParameterValue	(	const QString &	parameterName = `QString()`,
		const QString &	value = `QString()`
	)

Constructor.

Parameters

parameterName	- The name of the parameter to modify.
value	- The new value, formatted as the core expects it for the parameter's type. If the gate has no instance value yet, the declaration of its gate type is used. An empty value removes the instance value from the gate.

Definition at line 19 of file action_set_parameter_value.cpp.

Referenced by exec().

Member Function Documentation

◆ addToHash()

void hal::ActionSetParameterValue::addToHash ( QCryptographicHash & cryptoHash ) const

overridevirtual

Hook for derived classes to add parameter to cryptographic hash.

Parameters

cryptoHash - Additional hash data.

Reimplemented from hal::UserAction.

Definition at line 105 of file action_set_parameter_value.cpp.

References QCryptographicHash::addData(), and QString::toUtf8().

◆ exec()

bool hal::ActionSetParameterValue::exec ( )

overridevirtual

Executes user interaction and returns true on success. Note: Each implementation of exec() must include a call to the exec() method of base class to store the UserAction object in history and to transfer its ownership.
