#include <gate_type_component.h>

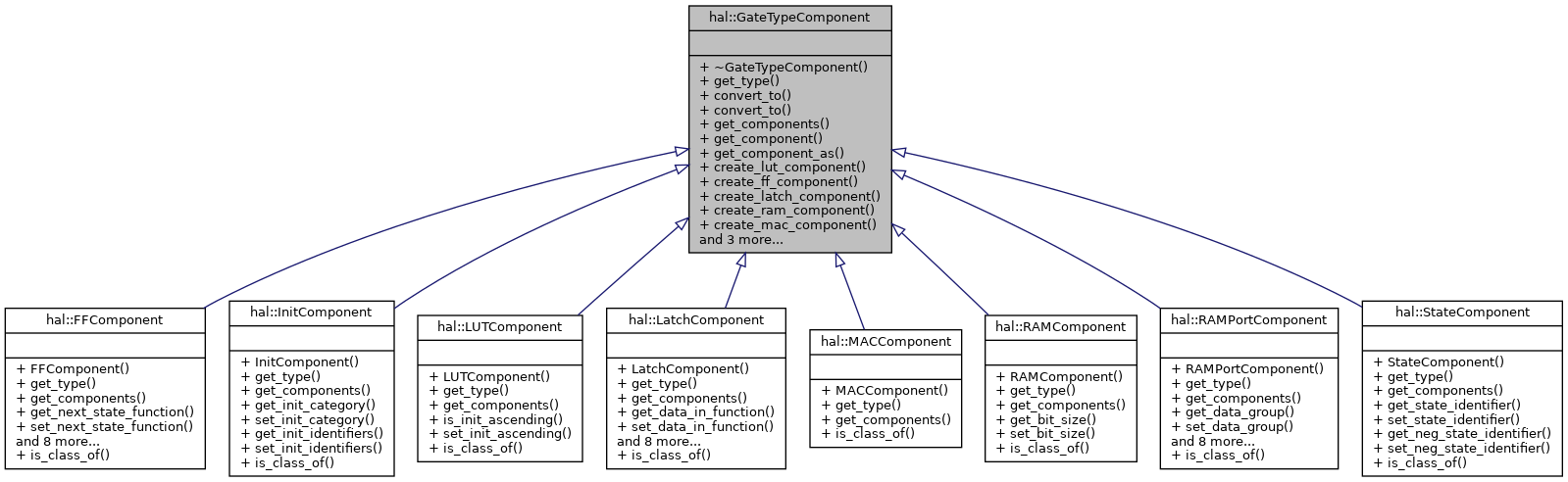

Inheritance diagram for hal::GateTypeComponent:

Collaboration diagram for hal::GateTypeComponent:

Public Types
enum class	ComponentType { lut , ff , latch , ram , mac , init , state , ram_port }

Public Member Functions
virtual	~GateTypeComponent ()=default

virtual ComponentType	get_type () const =0

template<typename T >
T *	convert_to ()

template<typename T >
const T *	convert_to () const

virtual std::vector< GateTypeComponent * >	get_components (const std::function< bool(const GateTypeComponent *)> &filter=nullptr) const =0

GateTypeComponent *	get_component (const std::function< bool(const GateTypeComponent *)> &filter=nullptr) const

template<typename T >
T *	get_component_as (const std::function< bool(const GateTypeComponent *)> &filter=nullptr)

Static Public Member Functions
static std::unique_ptr< GateTypeComponent >	create_lut_component (std::unique_ptr< GateTypeComponent > component, bool init_ascending)

static std::unique_ptr< GateTypeComponent >	create_ff_component (std::unique_ptr< GateTypeComponent > component, const BooleanFunction &next_state_bf, const BooleanFunction &clock_bf)

static std::unique_ptr< GateTypeComponent >	create_latch_component (std::unique_ptr< GateTypeComponent > component)

static std::unique_ptr< GateTypeComponent >	create_ram_component (std::unique_ptr< GateTypeComponent > component, const u32 bit_size)

static std::unique_ptr< GateTypeComponent >	create_mac_component ()

static std::unique_ptr< GateTypeComponent >	create_init_component (const std::string &init_category, const std::vector< std::string > &init_identifiers)

static std::unique_ptr< GateTypeComponent >	create_state_component (std::unique_ptr< GateTypeComponent > component, const std::string &state_identifier, const std::string &neg_state_identifier)

static std::unique_ptr< GateTypeComponent >	create_ram_port_component (std::unique_ptr< GateTypeComponent > component, const std::string &data_group, const std::string &addr_group, const BooleanFunction &clock_bf, const BooleanFunction &enable_bf, bool is_write)

Detailed Description

A component defining additional functionality of a gate type.

Definition at line 39 of file gate_type_component.h.

Member Enumeration Documentation

◆ ComponentType

enum hal::GateTypeComponent::ComponentType

strong

The type of a gate type component.

Enumerator
lut	LUT component type.
ff	Flip-flop component type.
latch	Latch component type.
ram	RAM component type.
mac	MAC component type.
init	Initialization component type.
state	State component type.
ram_port	RAM port component type.

Definition at line 47 of file gate_type_component.h.

Constructor & Destructor Documentation

◆ ~GateTypeComponent()

virtual hal::GateTypeComponent::~GateTypeComponent ( )

virtualdefault

Member Function Documentation

◆ convert_to() [1/2]

template<typename T >

T* hal::GateTypeComponent::convert_to ( )

inline

Convert the gate type component to a component of the type specified by the template parameter. A check is performed to determine whether the conversion is legal and a nullptr is returned in case it is not.

Returns: The component converted to the target type or a nullptr.

Definition at line 153 of file gate_type_component.h.

References hal::T.

Referenced by get_component_as(), hal::GateType::get_component_as(), and hal::GateLibraryWizard::setComponents().

◆ convert_to() [2/2]

template<typename T >

const T* hal::GateTypeComponent::convert_to ( ) const

inline

Convert the gate type component to a component of the type specified by the template parameter. A check is performed to determine whether the conversion is legal and a nullptr is returned in case it is not.

Returns: The component converted to the target type or a nullptr.

Definition at line 167 of file gate_type_component.h.

References hal::T.

◆ create_ff_component()

std::unique_ptr< GateTypeComponent > hal::GateTypeComponent::create_ff_component	(	std::unique_ptr< GateTypeComponent >	component,
		const BooleanFunction &	next_state_bf,
		const BooleanFunction &	clock_bf
	)

static

Create a new FFComponent with given child component and tzhe Boolean functions describing the next state and the clock signal.

Parameters

[in]	component	- Another component to be added as a child component.
[in]	next_state_bf	- The function describing the internal state.
[in]	clock_bf	- The function describing the clock input.

Returns: The FFComponent.

Definition at line 34 of file gate_type_component.cpp.

References hal::BooleanFunction::clone().

Referenced by hal::GateLibraryWizard::setComponents().

◆ create_init_component()

std::unique_ptr< GateTypeComponent > hal::GateTypeComponent::create_init_component	(	const std::string &	init_category,
		const std::vector< std::string > &	init_identifiers
	)

static

Create a new InitComponent with given child component, the category and a vector of identifiers pointing to the initialization data.

Parameters

[in]	init_category	- The data category.
[in]	init_identifiers	- The data identifiers.

Returns: The InitComponent.

Definition at line 60 of file gate_type_component.cpp.

Referenced by hal::GateLibraryWizard::setComponents().

◆ create_latch_component()

std::unique_ptr< GateTypeComponent > hal::GateTypeComponent::create_latch_component ( std::unique_ptr< GateTypeComponent > component )

static

Create a new LatchComponent with given child component and the Boolean functions describing the data input and the enable signal.

Parameters

[in] component - Another component to be added as a child component.

Returns: The LatchComponent.

Definition at line 39 of file gate_type_component.cpp.

Referenced by hal::GateLibraryWizard::setComponents().

◆ create_lut_component()

std::unique_ptr< GateTypeComponent > hal::GateTypeComponent::create_lut_component	(	std::unique_ptr< GateTypeComponent >	component,
		bool	init_ascending
	)

static

Create a new LUTComponent with given child component and bit-order.

Parameters

[in]	component	- Another component to be added as a child component.
[in]	init_ascending	- True if ascending bit-order, false otherwise.

Returns: The LUTComponent.

Definition at line 24 of file gate_type_component.cpp.

Referenced by hal::GateLibraryWizard::setComponents().

◆ create_mac_component()

std::unique_ptr< GateTypeComponent > hal::GateTypeComponent::create_mac_component ( )

static

Create a new MACComponent.

Returns: The MACComponent.

Definition at line 54 of file gate_type_component.cpp.

◆ create_ram_component()

std::unique_ptr< GateTypeComponent > hal::GateTypeComponent::create_ram_component	(	std::unique_ptr< GateTypeComponent >	component,
		const u32	bit_size
	)

static

Create a new RAMComponent with given child component.

Parameters

[in]	component	- Another component to be added as a child component.
[in]	bit_size	- The size of the RAM in bits.

Returns: The RAMComponent.

Definition at line 44 of file gate_type_component.cpp.

Referenced by hal::GateLibraryWizard::setComponents().

◆ create_ram_port_component()

std::unique_ptr< GateTypeComponent > hal::GateTypeComponent::create_ram_port_component	(	std::unique_ptr< GateTypeComponent >	component,
		const std::string &	data_group,
		const std::string &	addr_group,
		const BooleanFunction &	clock_bf,
		const BooleanFunction &	enable_bf,
		bool	is_write
	)

static

Create a new RAMPortComponent with given child component, the write/read data/address pin groups, and the write/read clock/enable functions.

Parameters

[in]	component	- Another component to be added as a child component.
[in]	data_group	- The name of the read or write data pin group.
[in]	addr_group	- The name of the read or write address pin group.
[in]	clock_bf	- The read or write clock's Boolean function.
[in]	enable_bf	- The read or write enable's Boolean function.
[in]	is_write	- Set true for write port, false for read port.

Returns: The RAMPortComponent.

Definition at line 71 of file gate_type_component.cpp.

References hal::BooleanFunction::clone().

Referenced by hal::GateLibraryWizard::setComponents().

◆ create_state_component()

std::unique_ptr< GateTypeComponent > hal::GateTypeComponent::create_state_component	(	std::unique_ptr< GateTypeComponent >	component,
		const std::string &	state_identifier,
		const std::string &	neg_state_identifier
	)

static

Create a new StateComponent with given child component and the internal state identifiers.

Parameters

[in]	component	- Another component to be added as a child component.
[in]	state_identifier	- The identifier of the internal state.
[in]	neg_state_identifier	- The identifier of the negated internal state.

Returns: The StateComponent.

Definition at line 66 of file gate_type_component.cpp.

Referenced by hal::GateLibraryWizard::setComponents().

◆ get_component()

GateTypeComponent * hal::GateTypeComponent::get_component ( const std::function< bool(const GateTypeComponent *)> & filter = nullptr ) const

Get a single component matching the filter condition (if provided). Returns a nullptr if (i) the gate type does not contain any components, (ii) multiple components match the filter condition, or (iii) no component matches the filter condition.

Parameters

[in] filter - The filter applied to all candidate components.

Returns: The component or a nullptr.

Definition at line 81 of file gate_type_component.cpp.

References get_components().

Referenced by hal::gate_type_components_init(), and get_component_as().

◆ get_component_as()

template<typename T >

T* hal::GateTypeComponent::get_component_as ( const std::function< bool(const GateTypeComponent *)> & filter = nullptr )

inline

Get a single sub-component of the gate type component and convert it to a component of the type specified by the template parameter. A user-defined filter may be applied to the result set, but is disabled by default. If more no or than one components match the filter condition, a nullptr is returned. A check is performed to determine whether the conversion is legal and a nullptr is returned in case it is not.

Parameters

[in] filter - The user-defined filter function applied to all candidate components.

Returns: The sub-component of the gate type component converted to the target type or a nullptr.

Definition at line 205 of file gate_type_component.h.

References convert_to(), get_component(), and hal::T.

Referenced by hal::Gate::add_boolean_function(), hal::Gate::get_init_data(), and hal::Gate::set_init_data().

◆ get_components()

virtual std::vector<GateTypeComponent*> hal::GateTypeComponent::get_components ( const std::function< bool(const GateTypeComponent *)> & filter = nullptr ) const

pure virtual

Get all components matching the filter condition (if provided) as a vector. Returns an empty vector if (i) the gate type does not contain any components or (ii) no component matches the filter condition.

Parameters

[in] filter - The filter applied to all candidate components, disabled by default.

Returns: The components.

Implemented in hal::StateComponent, hal::RAMPortComponent, hal::RAMComponent, hal::MACComponent, hal::LUTComponent, hal::LatchComponent, hal::InitComponent, and hal::FFComponent.

Referenced by hal::gate_type_components_init(), and get_component().

◆ get_type()

virtual ComponentType hal::GateTypeComponent::get_type ( ) const

pure virtual

Get the type of the gate type component.

Returns: The type of the gate type component.

Implemented in hal::StateComponent, hal::RAMPortComponent, hal::RAMComponent, hal::MACComponent, hal::LUTComponent, hal::LatchComponent, hal::InitComponent, and hal::FFComponent.

Referenced by hal::gate_type_components_init(), hal::GateType::has_component_of_type(), hal::FFComponent::is_class_of(), hal::InitComponent::is_class_of(), hal::LatchComponent::is_class_of(), hal::LUTComponent::is_class_of(), hal::MACComponent::is_class_of(), hal::RAMComponent::is_class_of(), hal::RAMPortComponent::is_class_of(), and hal::StateComponent::is_class_of().

The documentation for this class was generated from the following files:

/home/runner/work/hal/hal/include/hal_core/netlist/gate_library/gate_type_component/gate_type_component.h
/home/runner/work/hal/hal/src/netlist/gate_library/gate_type_component/gate_type_component.cpp
