hal::GuiExtensionModuleIdentification Class Reference

GUI extension interface for the module identification plugin. More...

#include </home/runner/work/hal/hal/plugins/module_identification/include/module_identification/plugin_module_identification.h>

Inheritance diagram for hal::GuiExtensionModuleIdentification:

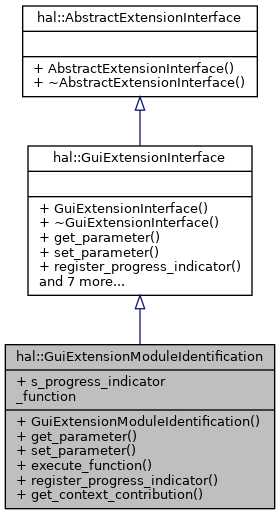

Collaboration diagram for hal::GuiExtensionModuleIdentification:

Public Member Functions
	GuiExtensionModuleIdentification ()=default
	Default constructor for GuiExtensionModuleIdentification. More...
std::vector< PluginParameter >	get_parameter () const override
	Get list of configurable parameters. More...
void	set_parameter (const std::vector< PluginParameter > &params) override
	Set configurable parameters to values. More...
void	execute_function (std::string tag, Netlist *nl, const std::vector< u32 > &mods, const std::vector< u32 > &gats, const std::vector< u32 > &nets) override
	Execute a function with a specific tag on a netlist. More...
virtual void	register_progress_indicator (std::function< void(int, const std::string &)> pif) override
	Register function to indicate work progress when busy. More...
std::vector< ContextMenuContribution >	get_context_contribution (const Netlist *nl, const std::vector< u32 > &mods, const std::vector< u32 > &gats, const std::vector< u32 > &nets)
	Get context menu contributions based on the current netlist and selection. More...
Public Member Functions inherited from hal::GuiExtensionInterface
	GuiExtensionInterface (const std::string &toplabel=std::string())
virtual	~GuiExtensionInterface ()
virtual void	netlist_loaded (Netlist *nl)
virtual void	netlist_about_to_close (Netlist *nl)
bool	is_contribution_enabled () const
void	set_contribution_enabled (bool enabled)
std::string	contribution_top_label () const
Public Member Functions inherited from hal::AbstractExtensionInterface
	AbstractExtensionInterface ()
virtual	~AbstractExtensionInterface ()

Static Public Attributes
static std::function< void(int, const std::string &)>	s_progress_indicator_function = nullptr
	Static progress indicator function. More...

Detailed Description

GUI extension interface for the module identification plugin.

This class provides a GUI extension interface for the module identification plugin, allowing for parameter configuration, progress indication, and context menu contributions.

Definition at line 28 of file plugin_module_identification.h.

Constructor & Destructor Documentation

GuiExtensionModuleIdentification()

hal::GuiExtensionModuleIdentification::GuiExtensionModuleIdentification ( )

default

Default constructor for GuiExtensionModuleIdentification.

Member Function Documentation

execute_function()

void hal::GuiExtensionModuleIdentification::execute_function ( std::string  tag, Netlist *  nl, const std::vector< u32 > &  mods, const std::vector< u32 > &  gats, const std::vector< u32 > &  nets  )

overridevirtual

Execute a function with a specific tag on a netlist.

Parameters

[in]	tag	- The tag of the function to execute.
[in]	nl	- The netlist to operate on.
[in]	mods	- The modules involved.
[in]	gats	- The gates involved.
[in]	nets	- The nets involved.

Reimplemented from hal::GuiExtensionInterface.

Definition at line 155 of file plugin_module_identification.cpp.

References hal::module_identification::all_checkable_candidate_types, hal::module_identification::execute(), hal::module_identification::execute_on_gates(), hal::Netlist::get_gate_by_id(), hal::Module::get_gates(), hal::Netlist::get_module_by_id(), log_error, log_warning, hal::module_identification::memory_priority, s_progress_indicator_function, hal::module_identification::Configuration::with_max_control_signals(), hal::module_identification::Configuration::with_max_thread_count(), hal::module_identification::Configuration::with_multithreading_priority(), and hal::module_identification::Configuration::with_types_to_check().

get_context_contribution()

std::vector< ContextMenuContribution > hal::GuiExtensionModuleIdentification::get_context_contribution ( const Netlist *  nl, const std::vector< u32 > &  mods, const std::vector< u32 > &  gats, const std::vector< u32 > &  nets  )

virtual

Get context menu contributions based on the current netlist and selection.

Parameters

[in]	nl	- The netlist to operate on.
[in]	mods	- The selected modules.
[in]	gats	- The selected gates.
[in]	nets	- The selected nets.

Returns

Vector of context menu contributions.

Reimplemented from hal::GuiExtensionInterface.

Definition at line 278 of file plugin_module_identification.cpp.

get_parameter()

std::vector< PluginParameter > hal::GuiExtensionModuleIdentification::get_parameter ( ) const

overridevirtual

Get list of configurable parameters.

Returns

List of parameters.

Reimplemented from hal::GuiExtensionInterface.

Definition at line 129 of file plugin_module_identification.cpp.

References hal::module_identification::all_checkable_candidate_types, hal::PluginParameter::Boolean, hal::PluginParameter::ComboBox, hal::enum_to_string(), hal::PluginParameter::Integer, hal::PluginParameter::PushButton, and hal::PluginParameter::TabName.

register_progress_indicator()

void hal::GuiExtensionModuleIdentification::register_progress_indicator ( std::function< void(int, const std::string &)>  pif )

overridevirtual

Register function to indicate work progress when busy.

Parameters

[in]

pif

- Progress Indicator Function to register.

Reimplemented from hal::GuiExtensionInterface.

Definition at line 273 of file plugin_module_identification.cpp.

References s_progress_indicator_function.

set_parameter()

void hal::GuiExtensionModuleIdentification::set_parameter ( const std::vector< PluginParameter > &  params )

overridevirtual

Set configurable parameters to values.

Parameters

[in]

params

- The parameters with values.

GUI extension

Reimplemented from hal::GuiExtensionInterface.

Definition at line 52 of file plugin_module_identification.cpp.

References hal::module_identification::all_checkable_candidate_types, hal::enum_to_string(), log_error, hal::module_identification::memory_priority, and hal::module_identification::time_priority.

Member Data Documentation

s_progress_indicator_function

std::function< void(int, const std::string &)> hal::GuiExtensionModuleIdentification::s_progress_indicator_function = nullptr

static

Static progress indicator function.

Definition at line 112 of file plugin_module_identification.h.

Referenced by execute_function(), and register_progress_indicator().

---

The documentation for this class was generated from the following files:

• plugins/module_identification/include/module_identification/plugin_module_identification.h
• plugins/module_identification/src/plugin_module_identification.cpp
