#include <module_color_manager.h>

Inheritance diagram for hal::ModuleColorManager:

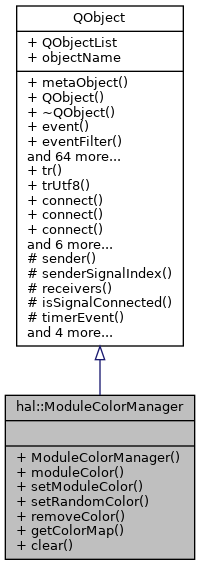

Collaboration diagram for hal::ModuleColorManager:

Signals
void	moduleColorChanged (u32 id) const

Public Member Functions
	ModuleColorManager (QObject *parent=nullptr)

QColor	moduleColor (u32 id) const

QColor	setModuleColor (u32 id, const QColor &col)

QColor	setRandomColor (u32 id)

void	removeColor (u32 id)

QMap< u32, QColor >	getColorMap () const

void	clear ()

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

	QObject (QObject *parent)

virtual	~QObject ()

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

	Q_DISABLE_COPY (Class)

	Q_DISABLE_MOVE (Class)

	Q_DISABLE_COPY_MOVE (Class)

T	qobject_cast (QObject *object)

T	qobject_cast (const QObject *object)

T	qFindChild (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QRegExp &regExp)

	Q_CLASSINFO (Name, Value)

	Q_INTERFACES (...)

	Q_PROPERTY (...)

	Q_ENUMS (...)

	Q_FLAGS (...)

	Q_ENUM (...)

	Q_FLAG (...)

	Q_ENUM_NS (...)

	Q_FLAG_NS (...)

	Q_OBJECT Q_OBJECT

	Q_GADGET Q_GADGET

	Q_NAMESPACE Q_NAMESPACE

	Q_NAMESPACE_EXPORT (EXPORT_MACRO)

	Q_SIGNALS Q_SIGNALS

	Q_SIGNAL Q_SIGNAL

	Q_SLOTS Q_SLOTS

	Q_SLOT Q_SLOT

	Q_EMIT Q_EMIT

	Q_INVOKABLE Q_INVOKABLE

	Q_REVISION Q_REVISION

	Q_SET_OBJECT_NAME (Object)

	QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT

Additional Inherited Members
Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Public Attributes inherited from QObject
typedef	QObjectList

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Properties inherited from QObject
	objectName

Detailed Description

Manages the module colors which will be assigned either by an "random" algorithm or manually by user. Quotes around "random" indicate it is not random at all, it is some homemade spinning around in HSV color circle.

Definition at line 40 of file module_color_manager.h.

Constructor & Destructor Documentation

◆ ModuleColorManager()

hal::ModuleColorManager::ModuleColorManager ( QObject * parent = nullptr )

Definition at line 16 of file module_color_manager.cpp.

References setModuleColor().

Member Function Documentation

◆ clear()

void hal::ModuleColorManager::clear ( )

Definition at line 22 of file module_color_manager.cpp.

References QMap::clear().

◆ getColorMap()

QMap< u32, QColor > hal::ModuleColorManager::getColorMap ( ) const

Getter for map of all module colores

Returns: The map of all module colores

Definition at line 61 of file module_color_manager.cpp.

◆ moduleColor()

QColor hal::ModuleColorManager::moduleColor ( u32 id ) const

Gets the module color of a module of a specific id.

Parameters

id	- The module id of the module to get the color for

Returns: the color of the module

Definition at line 27 of file module_color_manager.cpp.

References QMap::value().

Referenced by hal::ActionDeleteObject::exec(), and hal::NetlistRelay::getModuleColor().

◆ moduleColorChanged

void hal::ModuleColorManager::moduleColorChanged ( u32 id ) const

signal

Q_SIGNAL to notify that the color of a module has been changed.

Parameters

id	- Id of the module with the changed color

Referenced by hal::ModuleDetailsTabWidget::ModuleDetailsTabWidget(), hal::SelectionTreeView::SelectionTreeView(), and setModuleColor().

◆ removeColor()

void hal::ModuleColorManager::removeColor ( u32 id )

Removes the color that belongs to the given id.

Parameters

id	- The module id for which to remove the color.

Definition at line 66 of file module_color_manager.cpp.

References QMap::remove().

◆ setModuleColor()

QColor hal::ModuleColorManager::setModuleColor	(	u32	id,
		const QColor &	col
	)

Changes the color of a module.

Parameters

id	- The id of the module
col	- The new color

Returns: the old color of the module (used to create an undo action easier)

Definition at line 32 of file module_color_manager.cpp.

References id, moduleColorChanged(), QObject::Q_EMIT(), and QMap::value().

Referenced by hal::ActionSetObjectColor::exec(), and ModuleColorManager().

◆ setRandomColor()

QColor hal::ModuleColorManager::setRandomColor ( u32 id )

Changes the color of a module to a random color.

Parameters

id	- The id of the module

Returns: the old color of the module (used to create an undo action easier)

Definition at line 54 of file module_color_manager.cpp.

References QMap::insert(), and QMap::value().

Referenced by hal::NetlistRelay::debugHandleFileOpened().

The documentation for this class was generated from the following files:

/home/runner/work/hal/hal/plugins/gui/include/gui/module_model/module_color_manager.h
/home/runner/work/hal/hal/plugins/gui/src/module_model/module_color_manager.cpp
