hal::WaveFormPrimitiveTrigger Class Reference

#include </home/runner/work/hal/hal/plugins/simulator/waveform_viewer/include/waveform_viewer/wave_form_primitive.h>

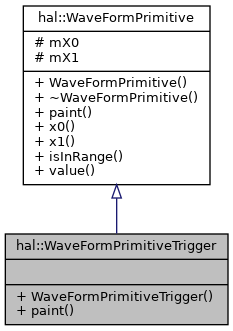

Inheritance diagram for hal::WaveFormPrimitiveTrigger:

Collaboration diagram for hal::WaveFormPrimitiveTrigger:

Public Member Functions
	WaveFormPrimitiveTrigger (float x)
void	paint (int y0, QPainter &painter)
Public Member Functions inherited from hal::WaveFormPrimitive
	WaveFormPrimitive (float x0, float x1)
virtual	~WaveFormPrimitive ()
float	x0 () const
float	x1 () const
bool	isInRange (int x) const
virtual int	value () const

Additional Inherited Members
Protected Attributes inherited from hal::WaveFormPrimitive
float	mX0
float	mX1

Detailed Description

A marker that highlights a point in time at which a trigger fired.

Definition at line 77 of file wave_form_primitive.h.

Constructor & Destructor Documentation

WaveFormPrimitiveTrigger()

hal::WaveFormPrimitiveTrigger::WaveFormPrimitiveTrigger ( float  x )

inline

Definition at line 80 of file wave_form_primitive.h.

Member Function Documentation

paint()

void hal::WaveFormPrimitiveTrigger::paint ( int  y0, QPainter &  painter  )

virtual

Implements hal::WaveFormPrimitive.

Definition at line 22 of file wave_form_primitive.cpp.

References QPainter::brush(), QPen::color(), QPainter::drawLine(), QPainter::drawPolygon(), hal::WaveFormPrimitive::mX0, QPainter::pen(), and QPainter::setBrush().

---

The documentation for this class was generated from the following files:

• plugins/simulator/waveform_viewer/include/waveform_viewer/wave_form_primitive.h
• plugins/simulator/waveform_viewer/src/wave_form_primitive.cpp
