hal::NetlistSimulatorControllerPlugin Class Reference

#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/plugin_netlist_simulator_controller.h>

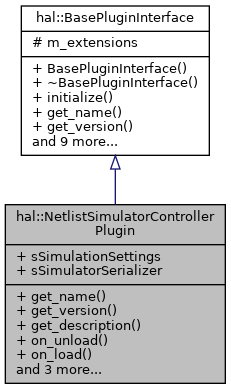

Inheritance diagram for hal::NetlistSimulatorControllerPlugin:

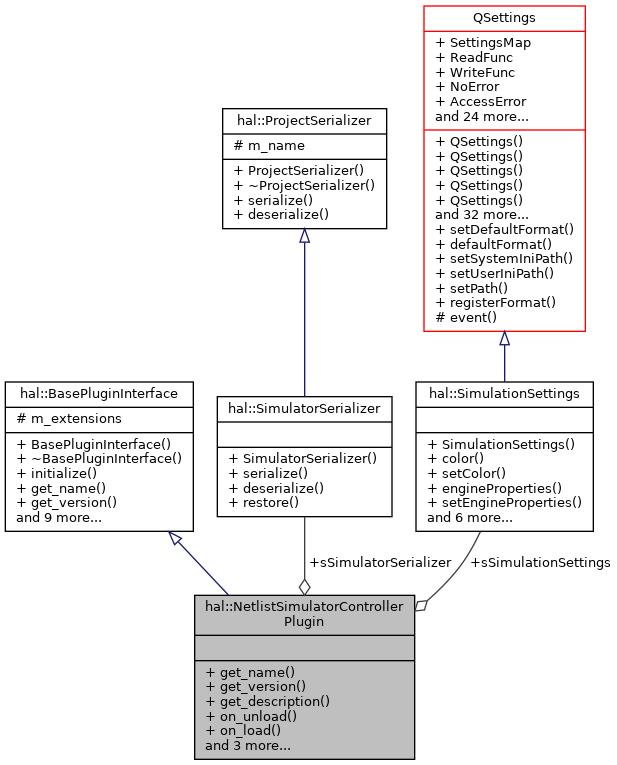

Collaboration diagram for hal::NetlistSimulatorControllerPlugin:

Public Member Functions
std::string	get_name () const override
std::string	get_version () const override
std::string	get_description () const override
void	on_unload () override
void	on_load () override
std::unique_ptr< NetlistSimulatorController >	create_simulator_controller (const std::string &nam=std::string(), const std::string &workdir=std::string()) const
std::unique_ptr< NetlistSimulatorController >	restore_simulator_controller (Netlist *nl, const std::string &filename) const
std::shared_ptr< NetlistSimulatorController >	simulator_controller_by_id (u32 id) const
Public Member Functions inherited from hal::BasePluginInterface
	BasePluginInterface ()=default
virtual	~BasePluginInterface ()
virtual void	initialize ()
virtual std::set< std::string >	get_dependencies () const
template<typename... Args>
void	log (const Args &... args) const
virtual void	initialize_logging ()
virtual std::vector< AbstractExtensionInterface * >	get_extensions () const
template<typename T >
T *	get_first_extension () const
void	delete_extension (AbstractExtensionInterface *aeif)

Static Public Attributes
static SimulationSettings *	sSimulationSettings = nullptr
static SimulatorSerializer *	sSimulatorSerializer = nullptr

Additional Inherited Members
Protected Attributes inherited from hal::BasePluginInterface
std::vector< AbstractExtensionInterface * >	m_extensions

Detailed Description

The plugin that provides the simulation controller and the registry of simulation engines.

Definition at line 88 of file plugin_netlist_simulator_controller.h.

Member Function Documentation

create_simulator_controller()

std::unique_ptr< NetlistSimulatorController > hal::NetlistSimulatorControllerPlugin::create_simulator_controller	(	const std::string &	nam = std::string(),
		const std::string &	workdir = std::string()
	)		const

Create a netlist simulator controller instance.

Returns

The simulator instance.

Definition at line 123 of file plugin_netlist_simulator_controller.cpp.

References hal::NetlistSimulatorController::get_working_directory(), hal::NetlistSimulatorController::is_legal_directory_name(), and log_warning.

Referenced by hal::PYBIND11_PLUGIN().

get_description()

std::string hal::NetlistSimulatorControllerPlugin::get_description ( ) const

overridevirtual

Get short description for plugin.

Returns

The short description for the plugin.

Reimplemented from hal::BasePluginInterface.

Definition at line 118 of file plugin_netlist_simulator_controller.cpp.

get_name()

std::string hal::NetlistSimulatorControllerPlugin::get_name ( ) const

overridevirtual

Get the name of the plugin.

Returns

The name of the plugin.

Implements hal::BasePluginInterface.

Definition at line 108 of file plugin_netlist_simulator_controller.cpp.

Referenced by hal::PYBIND11_PLUGIN().

get_version()

std::string hal::NetlistSimulatorControllerPlugin::get_version ( ) const

overridevirtual

Get the version of the plugin.

Returns

The version of the plugin.

Implements hal::BasePluginInterface.

Definition at line 113 of file plugin_netlist_simulator_controller.cpp.

Referenced by hal::PYBIND11_PLUGIN().

on_load()

void hal::NetlistSimulatorControllerPlugin::on_load ( )

overridevirtual

Register resources upon load

Reimplemented from hal::BasePluginInterface.

Definition at line 173 of file plugin_netlist_simulator_controller.cpp.

References QDir::absoluteFilePath(), hal::LogManager::add_channel(), hal::LogManager::create_file_sink(), hal::LogManager::create_gui_sink(), hal::LogManager::create_stdout_sink(), QString::fromStdString(), hal::LogManager::get_instance(), hal::utils::get_user_config_directory(), QResource::registerResource(), sSimulationSettings, and sSimulatorSerializer.

on_unload()

void hal::NetlistSimulatorControllerPlugin::on_unload ( )

overridevirtual

Delete all bindings upon unload

Reimplemented from hal::BasePluginInterface.

Definition at line 160 of file plugin_netlist_simulator_controller.cpp.

References hal::NetlistSimulatorControllerMap::instance(), hal::NetlistSimulatorControllerMap::shutdown(), sSimulationSettings, sSimulatorSerializer, QSettings::sync(), and QResource::unregisterResource().

restore_simulator_controller()

std::unique_ptr< NetlistSimulatorController > hal::NetlistSimulatorControllerPlugin::restore_simulator_controller	(	Netlist *	nl,
		const std::string &	filename
	)		const

Restore controller with waveform data from previous simulation.

Parameters

[in]	nl	The netlist the simulation was performed with.
[in]	filename	Full path and filename of 'netlist_simulator_controller.json'.

Returns

The simulator instance.

Definition at line 136 of file plugin_netlist_simulator_controller.cpp.

References hal::NetlistSimulatorController::get_working_directory().

Referenced by hal::PYBIND11_PLUGIN(), and hal::SimulatorSerializer::restore().

simulator_controller_by_id()

std::shared_ptr< NetlistSimulatorController > hal::NetlistSimulatorControllerPlugin::simulator_controller_by_id

(

u32

id

)

const

Share netlist simulator controller instance addressed by id

Parameters

[in]

id

Controller-Id

Returns

Shared pointer to simulator

Definition at line 148 of file plugin_netlist_simulator_controller.cpp.

References hal::NetlistSimulatorControllerMap::controller(), hal::NetlistSimulatorControllerMap::instance(), and log_warning.

Referenced by hal::PYBIND11_PLUGIN().

Member Data Documentation

sSimulationSettings

SimulationSettings * hal::NetlistSimulatorControllerPlugin::sSimulationSettings = nullptr

static

Pointer to simulation controller settings. Use sync() to persist settings.

Definition at line 151 of file plugin_netlist_simulator_controller.h.

Referenced by hal::WaveTreeModel::data(), hal::WaveData::get_events(), hal::GuiExtensionSimulator::get_parameter(), hal::WaveData::loadPolicy(), hal::WaveData::loadSaleae(), hal::NetlistSimulatorController::NetlistSimulatorController(), hal::WaveDataProviderFile::nextPoint(), on_load(), on_unload(), hal::WaveFormPrimitiveUndefined::paint(), hal::WaveRenderEngine::paintEvent(), hal::NetlistSimulatorController::run_simulation(), hal::WaveWidget::setVisualizeNetState(), hal::WaveDataProviderFile::startValue(), hal::WaveDataProviderFile::storeCurrentDatapoint(), and hal::WaveEditTable::WaveEditTable().

sSimulatorSerializer

SimulatorSerializer * hal::NetlistSimulatorControllerPlugin::sSimulatorSerializer = nullptr

static

Definition at line 152 of file plugin_netlist_simulator_controller.h.

Referenced by on_load(), on_unload(), and hal::WaveformViewer::restoreFromProject().

---

The documentation for this class was generated from the following files:

• plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/plugin_netlist_simulator_controller.h
• plugins/simulator/netlist_simulator_controller/src/plugin_netlist_simulator_controller.cpp
