#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/netlist_simulator_controller.h>

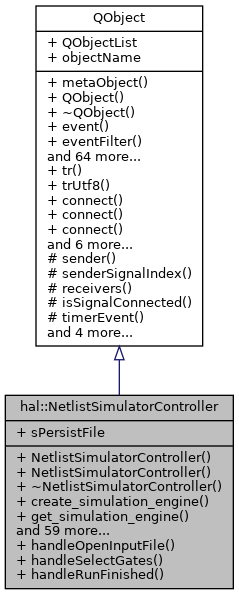

Inheritance diagram for hal::NetlistSimulatorController:

Collaboration diagram for hal::NetlistSimulatorController:

Classes
struct	InputColumnHeader

Public Types
enum	SimulationState { NoGatesSelected , ParameterSetup , ParameterReady , SimulationRun , ShowResults , EngineFailed }

enum	FilterInputFlag { GlobalInputs , PartialNetlist , CompleteNetlist , NoFilter }

Public Slots
void	handleOpenInputFile (const QString &filename)

void	handleSelectGates ()

void	handleRunFinished (bool success)

Signals
void	stateChanged (hal::NetlistSimulatorController::SimulationState state)

void	engineFinished (bool success)

void	parseComplete ()

void	loadProgress (int percent)

Public Member Functions
	NetlistSimulatorController (u32 id, const std::string nam, const std::string &workdir, QObject *parent=nullptr)

	NetlistSimulatorController (u32 id, Netlist nl, const std::string &filename, QObject parent=nullptr)

	~NetlistSimulatorController ()

SimulationEngine *	create_simulation_engine (const std::string &name)

SimulationEngine *	get_simulation_engine () const

void	add_clock_frequency (const Net *clock_net, u64 frequency, bool start_at_zero=true)

void	add_clock_period (const Net *clock_net, u64 period, bool start_at_zero=true, u64 duration=0)

void	set_no_clock_used ()

bool	is_no_clock_used () const

u32	add_waveform_group (const std::string &name, const std::vector< Net * > &nets)

u32	add_waveform_group (const PinGroup< ModulePin > *pin_group)

u32	add_waveform_group (const Gate gate, const PinGroup< GatePin > pin_group)

u32	add_waveform_group (const std::string &name, const PinGroup< ModulePin > *pin_group)

u32	add_boolean_expression_waveform (const std::string &expression)

u32	add_boolean_accept_list_waveform (const std::vector< WaveData * > &input_waves, const std::vector< int > &accepted_combination)

u32	add_trigger_time (const std::vector< WaveData * > &trigger_waves, const std::vector< int > &trigger_on_values=std::vector< int >())

void	remove_waveform_group (u32 group_id)

void	add_gates (const std::vector< Gate * > &gates)

void	compute_waveform_groups ()

void	load_waveform_groups (bool inputs)

void	set_input (const Net *net, BooleanFunction::Value value)

void	set_input (WaveData *wd, BooleanFunction::Value value)

void	set_input (const std::vector< Net * > &nets, const std::vector< BooleanFunction::Value > &values)

void	set_input (const WaveDataGroup *wdg, const std::vector< BooleanFunction::Value > &values)

void	set_input (const u32 id, const std::vector< BooleanFunction::Value > &values)

void	set_input (const PinGroup< ModulePin > *pin_group, const std::vector< BooleanFunction::Value > &values)

void	initialize ()

void	simulate (u64 picoseconds)

void	reset ()

const std::unordered_set< const Gate * > &	get_gates () const

const std::unordered_set< const Net * > &	get_input_nets () const

std::vector< InputColumnHeader >	get_input_column_headers () const

const std::vector< const Net * > &	get_output_nets () const

const std::vector< const Net * > &	get_partial_netlist_nets () const

std::vector< std::string >	get_engine_names () const

QString	name () const

std::string	get_name () const

u32	get_id () const

bool	get_results ()

u64	get_max_simulated_time () const

bool	run_simulation ()

bool	import_vcd (const std::string &filename, FilterInputFlag filter)

void	import_csv (const std::string &filename, FilterInputFlag filter, u64 timescale=1000000000)

void	import_saleae (const std::string &dirname, std::unordered_map< Net *, int > lookupTable, u64 timescale=1000000000)

void	import_simulation (const std::string &dirname, FilterInputFlag filter, u64 timescale=1000000000)

void	set_saleae_timescale (u64 timescale=1000000000)

bool	generate_vcd (const std::filesystem::path &path, u32 start_time=0, u32 end_time=0, std::set< const Net * > nets={}) const

std::string	get_working_directory () const

bool	is_legal_directory_name () const

std::filesystem::path	get_saleae_directory_filename () const

WaveDataList *	get_waves () const

SimulationState	get_state () const

WaveData *	get_waveform_by_net (const Net *n) const

void	rename_waveform (WaveData *wd, std::string name)

WaveDataGroup *	get_waveform_group_by_id (u32 id) const

WaveDataBoolean *	get_waveform_boolean_by_id (u32 id) const

WaveDataTrigger *	get_trigger_time_by_id (u32 id) const

void	set_timeframe (u64 tmin=0, u64 tmax=0)

void	emitLoadProgress (int percent)

bool	can_import_data () const

void	simulate_only_probes (const std::vector< const Net * > &probes)

void	simulate_only_probes (const QSet< u32 > &probes)

bool	persist () const

void	setLogReceiver (SimulationLogReceiver *logrec)

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

	QObject (QObject *parent)

virtual	~QObject ()

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

	Q_DISABLE_COPY (Class)

	Q_DISABLE_MOVE (Class)

	Q_DISABLE_COPY_MOVE (Class)

T	qobject_cast (QObject *object)

T	qobject_cast (const QObject *object)

T	qFindChild (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QRegExp &regExp)

	Q_CLASSINFO (Name, Value)

	Q_INTERFACES (...)

	Q_PROPERTY (...)

	Q_ENUMS (...)

	Q_FLAGS (...)

	Q_ENUM (...)

	Q_FLAG (...)

	Q_ENUM_NS (...)

	Q_FLAG_NS (...)

	Q_OBJECT Q_OBJECT

	Q_GADGET Q_GADGET

	Q_NAMESPACE Q_NAMESPACE

	Q_NAMESPACE_EXPORT (EXPORT_MACRO)

	Q_SIGNALS Q_SIGNALS

	Q_SIGNAL Q_SIGNAL

	Q_SLOTS Q_SLOTS

	Q_SLOT Q_SLOT

	Q_EMIT Q_EMIT

	Q_INVOKABLE Q_INVOKABLE

	Q_REVISION Q_REVISION

	Q_SET_OBJECT_NAME (Object)

	QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT

Static Public Attributes
static const char *	sPersistFile = "netlist_simulator_controller.json"

Additional Inherited Members
Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Public Attributes inherited from QObject
typedef	QObjectList

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Properties inherited from QObject
	objectName

Detailed Description

Drives a single simulation run from gate selection over input generation to the results. It is the central entry point for simulation, independent of the engine that eventually performs it.

Definition at line 61 of file netlist_simulator_controller.h.

Member Enumeration Documentation

◆ FilterInputFlag

enum hal::NetlistSimulatorController::FilterInputFlag

Enumerator
GlobalInputs
PartialNetlist
CompleteNetlist
NoFilter

Definition at line 73 of file netlist_simulator_controller.h.

◆ SimulationState

enum hal::NetlistSimulatorController::SimulationState

Enumerator
NoGatesSelected
ParameterSetup
ParameterReady
SimulationRun
ShowResults
EngineFailed

Definition at line 65 of file netlist_simulator_controller.h.

Constructor & Destructor Documentation

◆ NetlistSimulatorController() [1/2]

hal::NetlistSimulatorController::NetlistSimulatorController	(	u32	id,
		const std::string	nam,
		const std::string &	workdir,
		QObject *	parent = `nullptr`
	)

◆ NetlistSimulatorController() [2/2]

hal::NetlistSimulatorController::NetlistSimulatorController	(	u32	id,
		Netlist *	nl,
		const std::string &	filename,
		QObject *	parent = `nullptr`
	)

◆ ~NetlistSimulatorController()

hal::NetlistSimulatorController::~NetlistSimulatorController ( )

Definition at line 171 of file netlist_simulator_controller.cpp.

References QObject::deleteLater(), hal::NetlistSimulatorControllerMap::instance(), and hal::NetlistSimulatorControllerMap::removeController().

Member Function Documentation

◆ add_boolean_accept_list_waveform()

u32 hal::NetlistSimulatorController::add_boolean_accept_list_waveform	(	const std::vector< WaveData * > &	input_waves,
		const std::vector< int > &	accepted_combination
	)

Add boolean waveform based on list of accepted combinations

Parameters

input_waves	List of input waveforms
accepted_combination	List of accepted combinations. Each combination is coded as binary integer value which is matched bitwise with value of input waveform.

Returns: ID of new boolean waveform

Definition at line 344 of file netlist_simulator_controller.cpp.

References QList::append(), and hal::WaveData::id().

Referenced by hal::PYBIND11_PLUGIN().

◆ add_boolean_expression_waveform()

u32 hal::NetlistSimulatorController::add_boolean_expression_waveform ( const std::string & expression )

Add waveform based on boolean expression.

Parameters

expression The boolean expression based on names of existing waveforms.

Returns: ID of new boolean waveform

Definition at line 330 of file netlist_simulator_controller.cpp.

References QString::fromStdString(), and hal::WaveData::id().

Referenced by hal::PYBIND11_PLUGIN().

◆ add_clock_frequency()

void hal::NetlistSimulatorController::add_clock_frequency	(	const Net *	clock_net,
		u64	frequency,
		bool	start_at_zero = `true`
	)

Specify a net that carries the clock signal and set the clock frequency in hertz. This function can only be called before the simulation has been initialized.

Parameters

[in]	clock_net	- The net that carries the clock signal.
[in]	frequency	- The clock frequency in hertz.
[in]	start_at_zero	- Initial clock state is 0 if `true`, 1 otherwise.

Definition at line 1009 of file netlist_simulator_controller.cpp.

References add_clock_period().

Referenced by hal::PYBIND11_PLUGIN().

◆ add_clock_period()

void hal::NetlistSimulatorController::add_clock_period	(	const Net *	clock_net,
		u64	period,
		bool	start_at_zero = `true`,
		u64	duration = `0`
	)

Specify a net that carries the clock signal and set the clock period in picoseconds. This function can only be called before the simulation has been initialized.

Parameters

[in]	clock_net	- The net that carries the clock signal.
[in]	period	- The clock period from rising edge to rising edge in picoseconds.
[in]	start_at_zero	- Initial clock state is 0 if `true`, 1 otherwise.
[in]	duration	- Optional max time limit when showing clock in VCD viewer or editor

Definition at line 1029 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::add_clock(), hal::WaveDataList::addOrReplace(), hal::SimulationInput::Clock::clock_net, get_name(), log_warning, hal::SimulationInput::Clock::start_at_zero, and hal::SimulationInput::Clock::switch_time.

Referenced by add_clock_frequency(), NetlistSimulatorController(), hal::PYBIND11_PLUGIN(), and hal::PageClock::validatePage().

◆ add_gates()

void hal::NetlistSimulatorController::add_gates ( const std::vector< Gate * > & gates )

Add gates to the simulation set that contains all gates that are considered during simulation. This function can only be called before the simulation has been initialized.

Parameters

[in] gates - The gates to add.

Definition at line 1087 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::add_gates(), hal::WaveDataList::addOrReplace(), QSet::contains(), hal::SimulationInput::get_input_nets(), get_name(), hal::SimulationInput::has_gates(), hal::WaveData::InputNet, QSet::insert(), log_warning, NoGatesSelected, ParameterSetup, hal::WaveDataList::remove(), and hal::WaveDataList::toSet().

Referenced by hal::PYBIND11_PLUGIN(), and hal::PageSelectGates::validatePage().

◆ add_trigger_time()

u32 hal::NetlistSimulatorController::add_trigger_time	(	const std::vector< WaveData * > &	trigger_waves,
		const std::vector< int > &	trigger_on_values = `std::vector<int>()`
	)

Add trigger time vector based on wave transitions.

Parameters

trigger_waves	List of source waveform to generate trigger time
trigger_on_values	Optional list of values. Order of values must match order of waveform. Trigger will only be generated upon transition to value.

Returns: ID of new trigger time

Definition at line 306 of file netlist_simulator_controller.cpp.

References QList::append(), and hal::WaveData::id().

Referenced by hal::PYBIND11_PLUGIN().

◆ add_waveform_group() [1/4]

u32 hal::NetlistSimulatorController::add_waveform_group	(	const Gate *	gate,
		const PinGroup< GatePin > *	pin_group
	)

Create a waveform group from the nets of a given gate pin group.

Parameters

gate	The gate the pin group belongs to.
pin_group	The pin_group to create waveform group from.

Returns: ID of new waveform group

Definition at line 411 of file netlist_simulator_controller.cpp.

References add_waveform_group(), hal::Gate::get_fan_in_net(), hal::Gate::get_fan_out_net(), hal::PinGroup< T >::get_name(), get_name(), hal::PinGroup< T >::get_pins(), hal::input, log_warning, and hal::output.

◆ add_waveform_group() [2/4]

u32 hal::NetlistSimulatorController::add_waveform_group ( const PinGroup< ModulePin > * pin_group )

Create a waveform group from the nets of a given module pin group.

Parameters

pin_group The pin_group to create waveform group from.

Returns: ID of new waveform group

Definition at line 395 of file netlist_simulator_controller.cpp.

References add_waveform_group(), hal::PinGroup< T >::get_name(), get_name(), hal::PinGroup< T >::get_pins(), and log_warning.

◆ add_waveform_group() [3/4]

u32 hal::NetlistSimulatorController::add_waveform_group	(	const std::string &	name,
		const PinGroup< ModulePin > *	pin_group
	)

Create a waveform group from the nets of a given module pin group.

Parameters

pin_group	The pin_group to create waveform group from.
name	The name of the newly created waveform group from.

Returns: ID of new waveform group

Definition at line 443 of file netlist_simulator_controller.cpp.

References add_waveform_group(), hal::PinGroup< T >::get_name(), get_name(), hal::PinGroup< T >::get_pins(), log_warning, and name().

◆ add_waveform_group() [4/4]

u32 hal::NetlistSimulatorController::add_waveform_group	(	const std::string &	name,
		const std::vector< Net * > &	nets
	)

Add waveform group. Netlist must not be empty. First net in list is considered the lowest significant bit.

Parameters

name	The waveform group name
nets	List of nets for group

Returns: ID of new waveform group

Definition at line 368 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::addWavesToGroup(), QVector::append(), QString::fromStdString(), get_name(), get_waveform_by_net(), hal::WaveData::id(), QVector::isEmpty(), log_warning, name(), and QVector::reserve().

Referenced by add_waveform_group(), load_waveform_groups(), and hal::PYBIND11_PLUGIN().

◆ can_import_data()

bool hal::NetlistSimulatorController::can_import_data ( ) const

Controller is in a state that allows import from VCD, CSV, or SALEAE waveform data

Returns: true if import is allowed, false otherwise.

Definition at line 699 of file netlist_simulator_controller.cpp.

References ParameterReady, ParameterSetup, and ShowResults.

Referenced by hal::PageInputData::validatePage().

◆ compute_waveform_groups()

void hal::NetlistSimulatorController::compute_waveform_groups ( )

Create groups of waveform signals. Internally the routine is evaluating whether simulated nets are connected to pins which are grouped either by module pingroups or gate pingroups. Note that this method only identifies the groups. No waveform data gets loaded at this point since the singals might not be available yet (e.g. before simulation has run)

Definition at line 1053 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::compute_net_groups().

Referenced by hal::PageSelectGates::validatePage().

◆ create_simulation_engine()

SimulationEngine * hal::NetlistSimulatorController::create_simulation_engine ( const std::string & name )

Call to one of the registered engine factories to create a new engine. Controller will take ownership for new engine.

Parameters

[in] name name of engine factory (thus name of the engine)

Returns: Pointer to engine if successfully created, nullptr otherwise

Definition at line 250 of file netlist_simulator_controller.cpp.

References hal::SimulationEngineFactory::createEngine(), hal::SimulationEngineFactories::factoryByName(), get_name(), get_working_directory(), hal::SimulationEngineFactories::instance(), log_info, name(), hal::SimulationEngine::name(), and hal::SimulationEngine::set_working_directory().

Referenced by NetlistSimulatorController(), hal::PYBIND11_PLUGIN(), and hal::PageEngine::validatePage().

◆ emitLoadProgress()

void hal::NetlistSimulatorController::emitLoadProgress ( int percent )

Emit load progress when importing VCD, CSV, or SALEAE waveform

Parameters

[in] percent load progress, negative values to hide progess bar

Definition at line 709 of file netlist_simulator_controller.cpp.

References loadProgress(), and QObject::Q_EMIT().

◆ engineFinished

void hal::NetlistSimulatorController::engineFinished ( bool success )

signal

Referenced by handleRunFinished().

◆ generate_vcd()

bool hal::NetlistSimulatorController::generate_vcd	(	const std::filesystem::path &	path,
		u32	start_time = `0`,
		u32	end_time = `0`,
		std::set< const Net * >	nets = `{}`
	)		const

Generates the a partial VCD file for parts the simulated netlist.

Parameters

[in]	path	- The path to the VCD file.
[in]	start_time	- Start of the timeframe to write to the file (in picoseconds).
[in]	end_time	- End of the timeframe to write to the file (in picoseconds).
[in]	nets	- Nets to include in the VCD file.

Returns: true if the file gerneration was successful, false otherwise.

Definition at line 1291 of file netlist_simulator_controller.cpp.

References QList::append(), hal::VcdSerializer::exportVcd(), QString::fromStdString(), hal::WaveDataTimeframe::sceneMaxTime(), hal::WaveDataTimeframe::sceneMinTime(), hal::WaveDataList::timeFrame(), and hal::WaveDataList::waveDataByNet().

Referenced by hal::PYBIND11_PLUGIN().

◆ get_engine_names()

std::vector< std::string > hal::NetlistSimulatorController::get_engine_names ( ) const

Shortcut to SimulationEngines::instance()->names()

Returns: names of registered simulation engines

Definition at line 273 of file netlist_simulator_controller.cpp.

References hal::SimulationEngineFactories::factoryNames(), and hal::SimulationEngineFactories::instance().

Referenced by hal::PYBIND11_PLUGIN().

◆ get_gates()

const std::unordered_set< const Gate * > & hal::NetlistSimulatorController::get_gates ( ) const

Shortcut to SimulationInput::get_gates

Definition at line 1120 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::get_gates().

Referenced by hal::PYBIND11_PLUGIN(), and hal::PageSelectGates::validatePage().

◆ get_id()

u32 hal::NetlistSimulatorController::get_id ( ) const

inline

Getter for controller ID

Returns: the ID

Definition at line 346 of file netlist_simulator_controller.h.

Referenced by hal::NetlistSimulatorControllerMap::addController(), persist(), and hal::PYBIND11_PLUGIN().

◆ get_input_column_headers()

std::vector< NetlistSimulatorController::InputColumnHeader > hal::NetlistSimulatorController::get_input_column_headers ( ) const

Get headers for input columns. A column might comprise a single net or a group of nets

Definition at line 1130 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::get_clocks(), hal::SimulationInput::get_input_nets(), hal::SimulationInput::get_net_groups(), hal::NetlistSimulatorController::InputColumnHeader::is_clock, hal::NetlistSimulatorController::InputColumnHeader::name, and hal::NetlistSimulatorController::InputColumnHeader::nets.

Referenced by hal::PageInputData::initializePage().

◆ get_input_nets()

const std::unordered_set< const Net * > & hal::NetlistSimulatorController::get_input_nets ( ) const

Shortcut to SimulationInput::get_input_nets

Definition at line 1125 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::get_input_nets().

Referenced by hal::PageClock::initializePage(), hal::PYBIND11_PLUGIN(), hal::PageSelectGates::validatePage(), hal::PageClock::validatePage(), and hal::PageInputData::validatePage().

◆ get_max_simulated_time()

u64 hal::NetlistSimulatorController::get_max_simulated_time ( ) const

Convenience method to get the last time covered by simulation. This is the last transition found in waveforms.

Returns: Maximum of simulated time

Definition at line 236 of file netlist_simulator_controller.cpp.

References hal::WaveDataTimeframe::simulateMaxTime(), and hal::WaveDataList::timeFrame().

Referenced by hal::PYBIND11_PLUGIN().

◆ get_name()

std::string hal::NetlistSimulatorController::get_name ( ) const

inline

Getter for controller name

Returns: name as std::string

Definition at line 340 of file netlist_simulator_controller.h.

Referenced by add_clock_period(), add_gates(), add_waveform_group(), create_simulation_engine(), hal::PageRunSimulation::handleEngineFinished(), handleRunFinished(), import_simulation(), persist(), hal::PYBIND11_PLUGIN(), run_simulation(), set_input(), and hal::PageInputData::validatePage().

◆ get_output_nets()

const std::vector< const Net * > & hal::NetlistSimulatorController::get_output_nets ( ) const

Shortcut to SimulationInput::get_output_nets

Definition at line 1173 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::get_output_nets().

Referenced by hal::PYBIND11_PLUGIN().

◆ get_partial_netlist_nets()

const std::vector< const Net * > & hal::NetlistSimulatorController::get_partial_netlist_nets ( ) const

Shortcut to SimulationInput::get_partial_netlist_nets

Definition at line 1178 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::get_partial_netlist_nets().

Referenced by hal::PYBIND11_PLUGIN().

◆ get_results()

bool hal::NetlistSimulatorController::get_results ( )

Get simulated data from engine, either from shared memory or from VCD file

Returns: true on success, false otherwise

Definition at line 945 of file netlist_simulator_controller.cpp.

References EngineFailed, and ShowResults.

Referenced by hal::PageRunSimulation::handleEngineFinished(), and hal::PYBIND11_PLUGIN().

◆ get_saleae_directory_filename()

std::filesystem::path hal::NetlistSimulatorController::get_saleae_directory_filename ( ) const

Get the filename of SALEAE directory file (JSON format).

Returns: filename as std path

Definition at line 245 of file netlist_simulator_controller.cpp.

References hal::SaleaeDirectory::get_filename(), and hal::WaveDataList::saleaeDirectory().

Referenced by hal::Wizard::Wizard().

◆ get_simulation_engine()

SimulationEngine * hal::NetlistSimulatorController::get_simulation_engine ( ) const

Getter for simulation engine (if any)

Returns: Pointer to engine or nullptr

Definition at line 268 of file netlist_simulator_controller.cpp.

◆ get_state()

SimulationState hal::NetlistSimulatorController::get_state ( ) const

inline

Getter for controller state

Returns: state of type SimulationState

Definition at line 442 of file netlist_simulator_controller.h.

Referenced by hal::PageRunSimulation::handleEngineFinished(), hal::PageRunSimulation::nextId(), and hal::PageRunSimulation::validatePage().

◆ get_trigger_time_by_id()

WaveDataTrigger * hal::NetlistSimulatorController::get_trigger_time_by_id ( u32 id ) const

Getter for trigger time set.

Parameters

[in] id - Trigger time id.

Returns: The trigger time object which derives from WaveData.

Definition at line 656 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::mDataTrigger.

Referenced by hal::PYBIND11_PLUGIN().

◆ get_waveform_boolean_by_id()

WaveDataBoolean * hal::NetlistSimulatorController::get_waveform_boolean_by_id ( u32 id ) const

Getter for boolean waveform (which is a combination of several other waveform by boolean operation).

Parameters

[in] id - Boolean waveform id.

Returns: The boolean waveform object

Definition at line 651 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::mDataBooleans.

Referenced by hal::PYBIND11_PLUGIN().

◆ get_waveform_by_net()

WaveData * hal::NetlistSimulatorController::get_waveform_by_net ( const Net * n ) const

Getter for a single waveform

Parameters

[in] n - The net the waveform is associated with.

Returns: The waveform data

Definition at line 640 of file netlist_simulator_controller.cpp.

References hal::Net::get_id(), hal::WaveDataList::triggerAddToView(), and hal::WaveDataList::waveDataByNet().

Referenced by add_waveform_group(), hal::PYBIND11_PLUGIN(), and hal::PageSelectGates::validatePage().

◆ get_waveform_group_by_id()

WaveDataGroup * hal::NetlistSimulatorController::get_waveform_group_by_id ( u32 id ) const

Getter for waveform group

Parameters

[in] id - Waveform group id.

Returns: The waveform group object

Definition at line 646 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::mDataGroups.

Referenced by hal::PYBIND11_PLUGIN(), and set_input().

◆ get_waves()

WaveDataList* hal::NetlistSimulatorController::get_waves ( ) const

inline

Getter for wave data list - simulation input as well as output

Returns: const pointer to wave data list

Definition at line 436 of file netlist_simulator_controller.h.

Referenced by hal::PerfTestPlugin::cmp_sim_data(), hal::PageSelectGates::validatePage(), hal::PageInputData::validatePage(), hal::PageLoadResults::validatePage(), and hal::WaveWidget::WaveWidget().

◆ get_working_directory()

std::string hal::NetlistSimulatorController::get_working_directory ( ) const

The working directory. Directory is temporary and will be removed when controller gets deleted

Returns: directory path

Definition at line 222 of file netlist_simulator_controller.cpp.

References QString::toStdString().

Referenced by create_simulation_engine(), hal::NetlistSimulatorControllerPlugin::create_simulator_controller(), hal::PYBIND11_PLUGIN(), hal::NetlistSimulatorControllerPlugin::restore_simulator_controller(), and hal::PageInputData::validatePage().

◆ handleOpenInputFile

void hal::NetlistSimulatorController::handleOpenInputFile ( const QString & filename )

slot

Definition at line 464 of file netlist_simulator_controller.cpp.

References QList::append(), hal::SimulationInput::get_input_nets(), hal::VcdSerializer::importVcd(), QString::isEmpty(), and hal::WaveDataList::updateFromSaleae().

◆ handleRunFinished

void hal::NetlistSimulatorController::handleRunFinished ( bool success )

slot

Definition at line 922 of file netlist_simulator_controller.cpp.

References EngineFailed, engineFinished(), get_name(), log_warning, and QObject::Q_EMIT().

Referenced by hal::SimulationProcess::SimulationProcess(), and hal::SimulationThread::SimulationThread().

◆ handleSelectGates

void hal::NetlistSimulatorController::handleSelectGates ( )

slot

Definition at line 1283 of file netlist_simulator_controller.cpp.

◆ import_csv()

void hal::NetlistSimulatorController::import_csv	(	const std::string &	filename,
		FilterInputFlag	filter,
		u64	timescale = `1000000000`
	)

Import CSV file and convert content into SALEAE format

Parameters

[in]	filename	the filename to read
[in]	filter	filter to select waveform data from file
[in]	timescale	multiplication factor for time value in first column

Definition at line 741 of file netlist_simulator_controller.cpp.

References QList::append(), QString::fromStdString(), hal::VcdSerializer::importCsv(), NoFilter, parseComplete(), QObject::Q_EMIT(), and hal::WaveDataList::updateFromSaleae().

Referenced by hal::PYBIND11_PLUGIN(), and hal::PageInputData::validatePage().

◆ import_saleae()

void hal::NetlistSimulatorController::import_saleae	(	const std::string &	dirname,
		std::unordered_map< Net *, int >	lookupTable,
		u64	timescale = `1000000000`
	)

Import nets given by lookup table from SALEAE directory

Parameters

[in]	dirname	the directory to import files from
[in]	lookupTable	mapping nets to be imported with saleae file index
[in]	timescale	multiplication factor for time value if SALEAE data in float format

Definition at line 762 of file netlist_simulator_controller.cpp.

References QString::fromStdString(), hal::VcdSerializer::importSaleae(), parseComplete(), QObject::Q_EMIT(), and hal::WaveDataList::updateFromSaleae().

Referenced by hal::PYBIND11_PLUGIN(), and hal::PageInputData::validatePage().

◆ import_simulation()

void hal::NetlistSimulatorController::import_simulation	(	const std::string &	dirname,
		FilterInputFlag	filter,
		u64	timescale = `1000000000`
	)

Imports nets from simulation working directory. Existing saleae directory required to nets with binary data

Parameters

[in]	dirname	the directory to import files from
[in]	filter	filter to select waveform data for import
[in]	timescale	multiplication factor for time value if SALEAE data in float format

Definition at line 773 of file netlist_simulator_controller.cpp.

References QDir::absoluteFilePath(), QFile::copy(), QDir::entryInfoList(), QString::fromStdString(), hal::SaleaeDirectory::get_datafile_index(), hal::SaleaeDirectory::get_directory(), get_name(), hal::VcdSerializer::importSaleae(), log_warning, NoFilter, parseComplete(), QObject::Q_EMIT(), QFile::remove(), hal::WaveDataList::saleaeDirectory(), QString::toStdString(), and hal::WaveDataList::updateFromSaleae().

Referenced by hal::PYBIND11_PLUGIN().

◆ import_vcd()

bool hal::NetlistSimulatorController::import_vcd	(	const std::string &	filename,
		FilterInputFlag	filter
	)

Import VCD file and convert content into SALEAE format

Parameters

[in]	filename	the filename to read
[in]	filter	filter to select waveform data from file

Definition at line 714 of file netlist_simulator_controller.cpp.

References QList::append(), QString::fromStdString(), hal::VcdSerializer::importVcd(), NoFilter, parseComplete(), QObject::Q_EMIT(), and hal::WaveDataList::updateFromSaleae().

Referenced by hal::PYBIND11_PLUGIN(), and hal::PageInputData::validatePage().

◆ initialize()

void hal::NetlistSimulatorController::initialize ( )

Initialize the simulation. No additional gates or clocks can be added after this point.

Definition at line 1266 of file netlist_simulator_controller.cpp.

Referenced by hal::PYBIND11_PLUGIN().

◆ is_legal_directory_name()

bool hal::NetlistSimulatorController::is_legal_directory_name ( ) const

Verilator's gmake disallows spaces in directory name. Other tests (e.g. dot) might be added in future.

Returns: true if directory name is legal, false otherwise

Definition at line 227 of file netlist_simulator_controller.cpp.

References QString::contains().

Referenced by hal::NetlistSimulatorControllerPlugin::create_simulator_controller().

◆ is_no_clock_used()

bool hal::NetlistSimulatorController::is_no_clock_used ( ) const

Check wether no clock signal will be automatically generated as simulation input. Either there is no clock present or the clock signal will be passed as normal waveform input.

Definition at line 288 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::is_no_clock_used().

Referenced by hal::PageInputData::initializePage().

◆ load_waveform_groups()

void hal::NetlistSimulatorController::load_waveform_groups ( bool inputs )

Load waveform signal groups into container either for inputs or for everything except inputs

Parameters

[in] inputs - If true only waveform groups providing simulation input are loaded. Otherwise these groups are omitted.

Definition at line 1058 of file netlist_simulator_controller.cpp.

References add_waveform_group(), and hal::SimulationInput::get_net_groups().

Referenced by hal::PageSelectGates::validatePage(), and hal::PageLoadResults::validatePage().

◆ loadProgress

void hal::NetlistSimulatorController::loadProgress ( int percent )

signal

Referenced by emitLoadProgress(), and hal::WaveWidget::WaveWidget().

◆ name()

QString hal::NetlistSimulatorController::name ( ) const

inline

Getter for controller name

Returns: name as QString

Definition at line 334 of file netlist_simulator_controller.h.

Referenced by add_waveform_group(), create_simulation_engine(), hal::WaveformViewer::handleControllerAdded(), and rename_waveform().

◆ parseComplete

void hal::NetlistSimulatorController::parseComplete ( )

signal

Referenced by import_csv(), import_saleae(), import_simulation(), import_vcd(), and hal::WaveWidget::WaveWidget().

◆ persist()

bool hal::NetlistSimulatorController::persist ( ) const

Store significant information into working directory

Returns: true if JSON file created successfully, false otherwise.

Definition at line 483 of file netlist_simulator_controller.cpp.

References QDir::absoluteFilePath(), hal::JsonWriteObject::add_array(), hal::JsonWriteArray::add_object(), hal::JsonWriteObject::add_object(), hal::JsonWriteComplex::close(), hal::SimulationInput::get_clocks(), hal::SimulationEngine::get_engine_properties(), hal::SimulationInput::get_gates(), get_id(), get_name(), hal::SimulationEngine::name(), hal::JsonWriteDocument::serialize(), sPersistFile, and QString::toStdString().

Referenced by run_simulation().

◆ remove_waveform_group()

void hal::NetlistSimulatorController::remove_waveform_group ( u32 group_id )

Remove waveform group identified by group ID. Waveform for nets will still be shown but they are not bundled.

Parameters

group_id The ID of waveform group to be removed

Definition at line 459 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::removeGroup().

Referenced by hal::PYBIND11_PLUGIN().

◆ rename_waveform()

void hal::NetlistSimulatorController::rename_waveform	(	WaveData *	wd,
		std::string	name
	)

Rename waveform and emit 'renamed' signal

Parameters

[in]	wd	- Waveform to be renamed.
[in]	name	- New name for waveform.

Definition at line 661 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::emitGroupUpdated(), QString::fromStdString(), hal::WaveData::id(), name(), hal::WaveData::rename(), hal::WaveDataList::updateWaveName(), and hal::WaveDataList::waveIndexByNetId().

Referenced by hal::PYBIND11_PLUGIN().

◆ reset()

void hal::NetlistSimulatorController::reset ( )

Reset the simulator state, i.e., treat all signals as unknown. Does not remove gates/nets from the simulation set.

Definition at line 1270 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::clear(), hal::WaveDataList::clearAll(), and NoGatesSelected.

Referenced by hal::PYBIND11_PLUGIN(), hal::PageSelectGates::validatePage(), and hal::Wizard::Wizard().

◆ run_simulation()

bool hal::NetlistSimulatorController::run_simulation ( )

run simulation

Returns: true on success, false otherwise

Definition at line 530 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::addOrReplace(), QMap::begin(), hal::SimulationEngine::clock_events_required(), QHash::constBegin(), QHash::constEnd(), hal::WaveDataList::emitTimeframeChanged(), QMap::end(), EngineFailed, hal::SimulationSettings::engineProperties(), QString::fromStdString(), hal::SimulationInput::get_clocks(), hal::SimulationEngine::get_engine_property(), hal::SimulationInput::get_input_nets(), get_name(), hal::SimulationInput::is_clock(), QMap::isEmpty(), QMap::key(), log_info, log_warning, ParameterReady, persist(), hal::SimulationEngine::run(), hal::WaveDataTimeframe::sceneMaxTime(), hal::SimulationEngine::set_engine_property(), hal::SimulationSettings::setEngineProperties(), hal::SimulationEngine::setSimulationInput(), hal::WaveDataList::setValueForEmpty(), SimulationRun, hal::NetlistSimulatorControllerPlugin::sSimulationSettings, QSettings::sync(), and hal::WaveDataList::timeFrame().

Referenced by hal::PYBIND11_PLUGIN().

◆ set_input() [1/6]

void hal::NetlistSimulatorController::set_input	(	const Net *	net,
		BooleanFunction::Value	value
	)

Set the signal for a specific wire to control input signals between simulation cycles.

Parameters

[in]	net	- The net to set a signal value for.
[in]	value	- The value to set.

Definition at line 1183 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::addOrReplace(), get_name(), hal::WaveDataList::insertBooleanValue(), hal::WaveData::insertBooleanValueWithoutSync(), hal::SimulationInput::is_input_net(), log_warning, net, hal::WaveDataTimeframe::simulateMaxTime(), hal::WaveDataList::timeFrame(), and hal::WaveDataList::waveDataByNet().

Referenced by hal::PYBIND11_PLUGIN(), and set_input().

◆ set_input() [2/6]

void hal::NetlistSimulatorController::set_input	(	const PinGroup< ModulePin > *	pin_group,
		const std::vector< BooleanFunction::Value > &	values
	)

Set the signals for a specific module pin group to control input signals between simulation cycles.

Parameters

[in]	pin_group	- The module pin group.
[in]	values	- The values to set.

Definition at line 1250 of file netlist_simulator_controller.cpp.

References hal::PinGroup< T >::get_pins(), and set_input().

◆ set_input() [3/6]

void hal::NetlistSimulatorController::set_input	(	const std::vector< Net * > &	nets,
		const std::vector< BooleanFunction::Value > &	values
	)

Set the signal for a group of nets to control input signals between simulation cycles.

Parameters

[in]	nets	- The vector of nets.
[in]	values	- The values to set.

Definition at line 1214 of file netlist_simulator_controller.cpp.

References get_name(), log_error, and set_input().

◆ set_input() [4/6]

void hal::NetlistSimulatorController::set_input	(	const u32	id,
		const std::vector< BooleanFunction::Value > &	values
	)

Set the signals for a specific WaveDataGroup to control input signals between simulation cycles.

Parameters

[in]	id	- ID of the WaveDataGroup.
[in]	values	- The values to set.

Definition at line 1244 of file netlist_simulator_controller.cpp.

References get_waveform_group_by_id(), and set_input().

◆ set_input() [5/6]

void hal::NetlistSimulatorController::set_input	(	const WaveDataGroup *	wdg,
		const std::vector< BooleanFunction::Value > &	values
	)

Set the signals for a specific WaveDataGroup to control input signals between simulation cycles.

Parameters

[in]	wdg	- The WaveDataGroup.
[in]	values	- The values to set.

Definition at line 1228 of file netlist_simulator_controller.cpp.

References get_name(), hal::WaveDataGroup::get_waveforms(), log_error, and set_input().

◆ set_input() [6/6]

void hal::NetlistSimulatorController::set_input	(	WaveData *	wd,
		BooleanFunction::Value	value
	)

Set the signal for a specific wire to control input signals between simulation cycles.

Parameters

[in]	wd	- WaveData object of the signal.
[in]	value	- The value to set.

Definition at line 1208 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::insertBooleanValue(), hal::WaveDataTimeframe::simulateMaxTime(), and hal::WaveDataList::timeFrame().

◆ set_no_clock_used()

void hal::NetlistSimulatorController::set_no_clock_used ( )

Prepare simulation where no net is defined as clock input

Definition at line 282 of file netlist_simulator_controller.cpp.

References hal::SimulationInput::set_no_clock_used().

Referenced by hal::PYBIND11_PLUGIN(), and hal::PageClock::validatePage().

◆ set_saleae_timescale()

void hal::NetlistSimulatorController::set_saleae_timescale ( u64 timescale = 1000000000 )

Set timescale when parsing SALEAE float values

Parameters

[in] timescale multiplication factor for time value

Definition at line 917 of file netlist_simulator_controller.cpp.

References hal::SaleaeParser::sTimeScaleFactor.

Referenced by hal::PYBIND11_PLUGIN().

◆ set_timeframe()

void hal::NetlistSimulatorController::set_timeframe	(	u64	tmin = `0`,
		u64	tmax = `0`
	)

Set timeframe for viewer

Parameters

[in]	tmin	Lower limit for time scale in wave viewer
[in]	tmax	Upper limit for time scale in wave viewer

Definition at line 1261 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::setUserTimeframe().

Referenced by hal::PYBIND11_PLUGIN().

◆ setLogReceiver()

void hal::NetlistSimulatorController::setLogReceiver ( SimulationLogReceiver * logrec )

Set log receiver instance which gets called whenever new engine output is available

Parameters

logrec Log receiver instance derived from abstract base class SimulationLogReceiver

Definition at line 182 of file netlist_simulator_controller.cpp.

◆ simulate()

void hal::NetlistSimulatorController::simulate ( u64 picoseconds )

Simulate for a specific period, advancing the internal state. Automatically initializes the simulation if 'initialize' has not yet been called. Use 'set_input' to control specific signals.

Parameters

[in] picoseconds - The duration to simulate.

Definition at line 1277 of file netlist_simulator_controller.cpp.

References hal::WaveDataList::incrementSimulTime().

Referenced by hal::PYBIND11_PLUGIN(), and hal::PageInputData::validatePage().

◆ simulate_only_probes() [1/2]

void hal::NetlistSimulatorController::simulate_only_probes ( const QSet< u32 > & probes )

Discard all results except listed probes

Parameters

probes Set of net IDs which will be simulated (aka probes)

Definition at line 301 of file netlist_simulator_controller.cpp.

◆ simulate_only_probes() [2/2]

void hal::NetlistSimulatorController::simulate_only_probes ( const std::vector< const Net * > & probes )

Discard all results except listed probes

Parameters

probes List of nets which will be simulated (aka probes)

Definition at line 293 of file netlist_simulator_controller.cpp.

References QSet::insert().

◆ stateChanged

void hal::NetlistSimulatorController::stateChanged ( hal::NetlistSimulatorController::SimulationState state )

signal

Referenced by hal::WaveWidget::WaveWidget().

Member Data Documentation

◆ sPersistFile

const char * hal::NetlistSimulatorController::sPersistFile = "netlist_simulator_controller.json"

static

Definition at line 522 of file netlist_simulator_controller.h.

Referenced by persist().

The documentation for this class was generated from the following files:

plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/netlist_simulator_controller.h
plugins/simulator/netlist_simulator_controller/src/netlist_simulator_controller.cpp

Classes

Public Types

Public Slots

Signals

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ FilterInputFlag

◆ SimulationState

Constructor & Destructor Documentation

◆ NetlistSimulatorController() [1/2]

◆ NetlistSimulatorController() [2/2]

◆ ~NetlistSimulatorController()

Member Function Documentation

◆ add_boolean_accept_list_waveform()

◆ add_boolean_expression_waveform()

◆ add_clock_frequency()

◆ add_clock_period()

◆ add_gates()

◆ add_trigger_time()

◆ add_waveform_group() [1/4]

◆ add_waveform_group() [2/4]

◆ add_waveform_group() [3/4]

◆ add_waveform_group() [4/4]

◆ can_import_data()

◆ compute_waveform_groups()

◆ create_simulation_engine()

◆ emitLoadProgress()

◆ engineFinished

◆ generate_vcd()

◆ get_engine_names()

◆ get_gates()

◆ get_id()

◆ get_input_column_headers()

◆ get_input_nets()

◆ get_max_simulated_time()

◆ get_name()

◆ get_output_nets()

◆ get_partial_netlist_nets()

◆ get_results()

◆ get_saleae_directory_filename()

◆ get_simulation_engine()

◆ get_state()

◆ get_trigger_time_by_id()

◆ get_waveform_boolean_by_id()

◆ get_waveform_by_net()

◆ get_waveform_group_by_id()

◆ get_waves()

◆ get_working_directory()

◆ handleOpenInputFile

◆ handleRunFinished

◆ handleSelectGates

◆ import_csv()

◆ import_saleae()

◆ import_simulation()

◆ import_vcd()

◆ initialize()

◆ is_legal_directory_name()

◆ is_no_clock_used()

◆ load_waveform_groups()

◆ loadProgress

◆ name()

◆ parseComplete

◆ persist()

◆ remove_waveform_group()

◆ rename_waveform()

◆ reset()

◆ run_simulation()

◆ set_input() [1/6]

◆ set_input() [2/6]

◆ set_input() [3/6]

◆ set_input() [4/6]

◆ set_input() [5/6]

◆ set_input() [6/6]

◆ set_no_clock_used()

◆ set_saleae_timescale()

◆ set_timeframe()

◆ setLogReceiver()
