hal::WaveDataProvider Class Reference

#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data_provider.h>

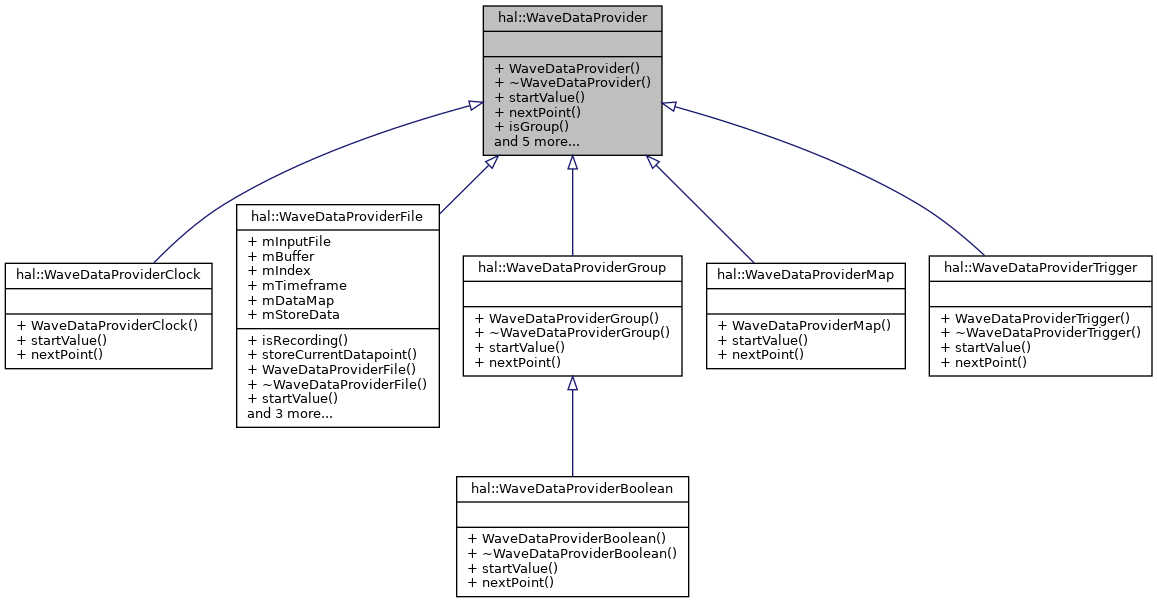

Inheritance diagram for hal::WaveDataProvider:

Collaboration diagram for hal::WaveDataProvider:

Public Member Functions
	WaveDataProvider ()
virtual	~WaveDataProvider ()
virtual SaleaeDataTuple	startValue (u64 t)=0
virtual SaleaeDataTuple	nextPoint ()=0
bool	isGroup () const
bool	isBoolean () const
bool	isTrigger () const
int	bits () const
int	valueBase () const
void	setWaveType (WaveData::NetType type, int bts=1, int base=16)

Detailed Description

The base class for the sources that feed waveform transitions to the renderer, one transition at a time.

Definition at line 45 of file wave_data_provider.h.

Constructor & Destructor Documentation

WaveDataProvider()

hal::WaveDataProvider::WaveDataProvider ( )

inline

Definition at line 51 of file wave_data_provider.h.

~WaveDataProvider()

virtual hal::WaveDataProvider::~WaveDataProvider ( )

inlinevirtual

Definition at line 52 of file wave_data_provider.h.

Member Function Documentation

bits()

int hal::WaveDataProvider::bits ( ) const

inline

Definition at line 58 of file wave_data_provider.h.

Referenced by hal::WaveFormPainted::generate().

isBoolean()

bool hal::WaveDataProvider::isBoolean ( ) const

inline

Definition at line 56 of file wave_data_provider.h.

References hal::WaveData::BooleanNet.

isGroup()

bool hal::WaveDataProvider::isGroup ( ) const

inline

Definition at line 55 of file wave_data_provider.h.

References hal::WaveData::NetGroup.

Referenced by hal::WaveFormPainted::generate().

isTrigger()

bool hal::WaveDataProvider::isTrigger ( ) const

inline

Definition at line 57 of file wave_data_provider.h.

References hal::WaveData::TriggerTime.

Referenced by hal::WaveFormPainted::generate().

nextPoint()

virtual SaleaeDataTuple hal::WaveDataProvider::nextPoint ( )

pure virtual

Implemented in hal::WaveDataProviderTrigger, hal::WaveDataProviderBoolean, hal::WaveDataProviderGroup, hal::WaveDataProviderClock, hal::WaveDataProviderFile, and hal::WaveDataProviderMap.

Referenced by hal::WaveFormPainted::generate(), hal::WaveFormPainted::generateTrigger(), and hal::WaveData::get_events().

setWaveType()

void hal::WaveDataProvider::setWaveType	(	WaveData::NetType	type,
		int	bts = 1,
		int	base = 16
	)

Definition at line 8 of file wave_data_provider.cpp.

References type.

Referenced by hal::WaveLoaderThread::run(), hal::WaveLoaderBackbone::run(), hal::WaveItem::startGeneratePainted(), and hal::WaveDataProviderBoolean::WaveDataProviderBoolean().

startValue()

virtual SaleaeDataTuple hal::WaveDataProvider::startValue ( u64  t )

pure virtual

Implemented in hal::WaveDataProviderTrigger, hal::WaveDataProviderBoolean, hal::WaveDataProviderGroup, hal::WaveDataProviderClock, hal::WaveDataProviderFile, and hal::WaveDataProviderMap.

Referenced by hal::WaveFormPainted::generate(), hal::WaveFormPainted::generateTrigger(), and hal::WaveData::get_events().

valueBase()

int hal::WaveDataProvider::valueBase ( ) const

inline

Definition at line 59 of file wave_data_provider.h.

Referenced by hal::WaveFormPainted::generate().

---

The documentation for this class was generated from the following files:

• plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data_provider.h
• plugins/simulator/netlist_simulator_controller/src/wave_data_provider.cpp
