hal::WaveData Class Reference

#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data.h>

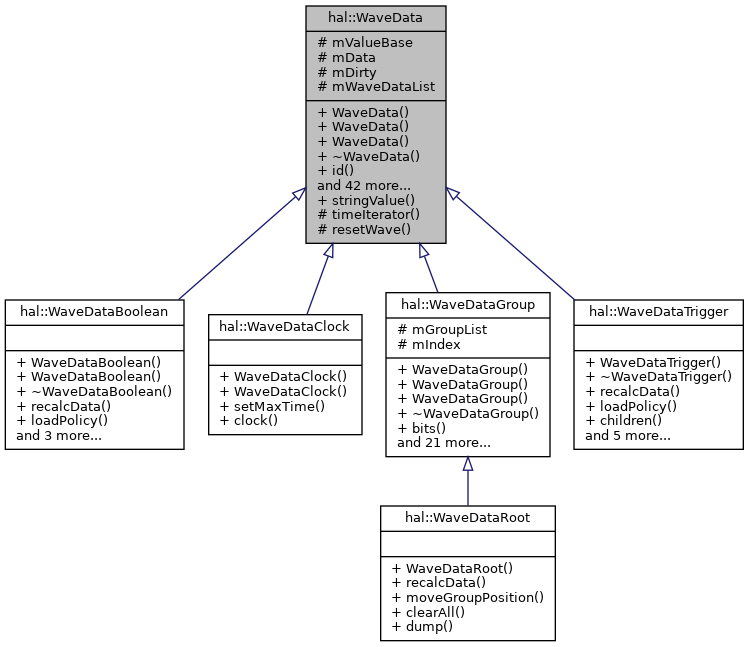

Inheritance diagram for hal::WaveData:
Inheritance graph

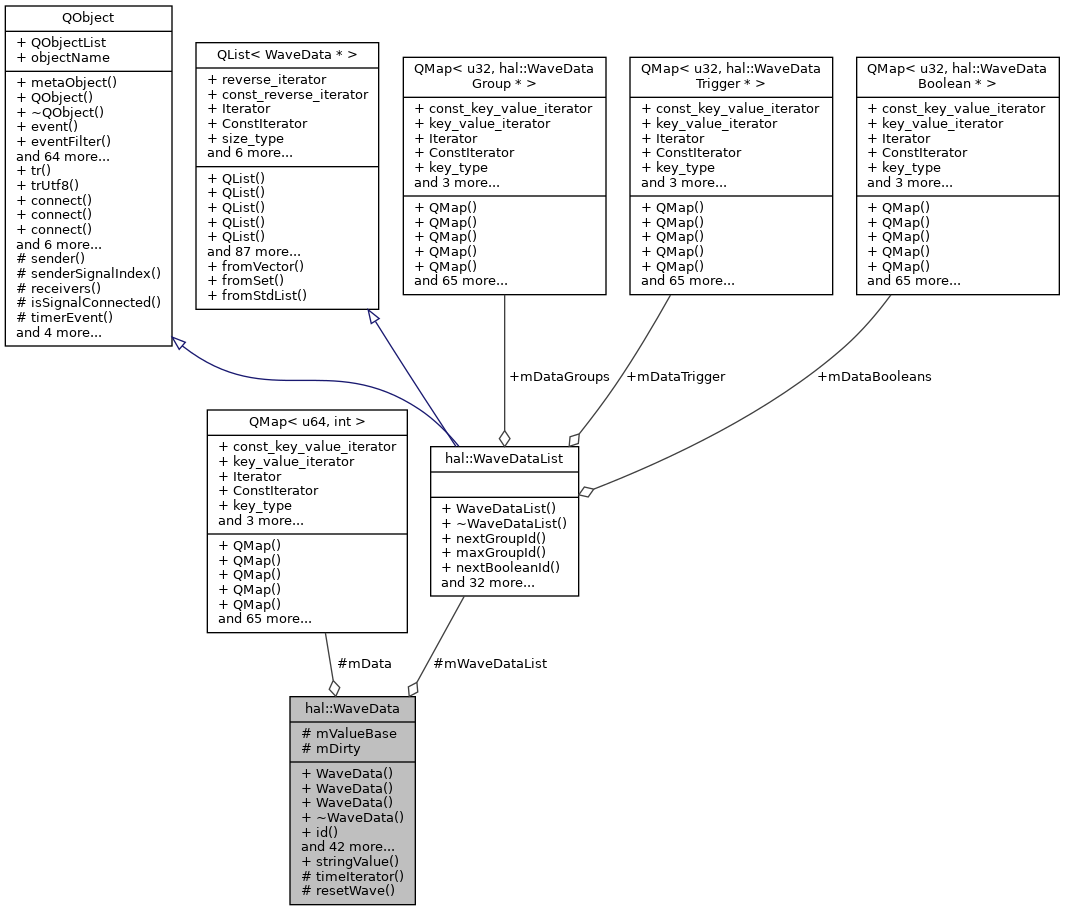

Collaboration diagram for hal::WaveData:
Collaboration graph

Public Types

enum  NetType {
  RegularNet , InputNet , OutputNet , ClockNet ,
  BooleanNet , TriggerTime , NetGroup
}

enum  LoadPolicy { TooBigToLoad , LoadTimeframe , LoadAllData }


Public Member Functions

 WaveData (const WaveData &other)

 WaveData (u32 id_, const QString &nam, NetType tp=RegularNet, const QMap< u64, int > &dat=QMap< u64, int >())

 WaveData (const Net *n, NetType tp=RegularNet)

virtual ~WaveData ()

u32 id () const

QString name () const

NetType netType () const

virtual int bits () const

bool isDirty () const

const QMap< u64, int > & data () const

int fileIndex () const

u64 fileSize () const

int valueBase () const

std::string fileName () const

SaleaeDirectoryNetEntry::Type composedType () const

void setId (u32 id_)

bool rename (const QString &nam)

void setBits (int bts)

void setDirty (bool dty)

void setFileIndex (int saleaIndex)

void setFileSize (u64 siz)

void setTimeframeSize (u64 siz)

void setWaveDataList (WaveDataList *wdList)

virtual LoadPolicy loadPolicy () const

int dataIndex () const

virtual u64 neighborTransition (double t, bool next) const

void loadDataUnlessAlreadyLoaded ()

bool loadSaleae (const WaveDataTimeframe &tframe=WaveDataTimeframe())

void saveSaleae ()

void setData (const QMap< u64, int > &dat)

virtual int intValue (double t) const

int get_value_at (u64 t)

std::string get_name () const

std::vector< std::pair< u64, int > > get_events (u64 t0=0) const

std::vector< std::pair< u64, int > > get_triggered_events (const WaveDataTrigger *wdTrig, u64 t0=0)

u64 maxTime () const

void clear ()

void insert (u64 t, int val)

void insertBooleanValueWithoutSync (u64 t, BooleanFunction::Value bval)

QString strValue (int val) const

QString strValue (double t) const

QString strValue (const QMap< u64, int >::const_iterator &it) const

void setValueBase (int bas)

bool isEqual (const WaveData &other, int tolerance=0) const

bool hasSubscriber () const

void addSubscriber ()

void removeSubscriber ()


Static Public Member Functions

static QString stringValue (int val, int bits, int base)


Protected Member Functions

QMap< u64, int >::const_iterator timeIterator (double t) const

void resetWave ()


Protected Attributes

int mValueBase

QMap< u64, int > mData

bool mDirty

WaveDataList * mWaveDataList


Detailed Description

The waveform of a single net, i.e., the sequence of value changes over time together with its display properties.

Definition at line 75 of file wave_data.h.

Member Enumeration Documentation

◆ LoadPolicy

enum hal::WaveData::LoadPolicy
Enumerator
TooBigToLoad
LoadTimeframe
LoadAllData

Definition at line 79 of file wave_data.h.

◆ NetType

enum hal::WaveData::NetType
Enumerator
RegularNet
InputNet
OutputNet
ClockNet
BooleanNet
TriggerTime
NetGroup

Definition at line 78 of file wave_data.h.

Constructor & Destructor Documentation

◆ WaveData() [1/3]

hal::WaveData::WaveData ( const WaveData &  other)

Definition at line 48 of file wave_data.cpp.

Referenced by hal::WaveDataGroup::addNet(), and hal::WaveDataGroup::WaveDataGroup().

◆ WaveData() [2/3]

hal::WaveData::WaveData ( u32  id_,
const QString &  nam,
NetType  tp = RegularNet,
const QMap< u64, int > &  dat = QMap<u64,int>()
)

Definition at line 54 of file wave_data.cpp.

◆ WaveData() [3/3]

hal::WaveData::WaveData ( const Net *  n,
NetType  tp = RegularNet
)

Definition at line 58 of file wave_data.cpp.

◆ ~WaveData()

virtual hal::WaveData::~WaveData ( )
inlinevirtual

Definition at line 102 of file wave_data.h.

Member Function Documentation

◆ addSubscriber()

void hal::WaveData::addSubscriber ( )
inline

Definition at line 146 of file wave_data.h.

Referenced by hal::WaveItem::WaveItem().

◆ bits()

virtual int hal::WaveData::bits ( ) const
inlinevirtual

Reimplemented in hal::WaveDataGroup.

Definition at line 106 of file wave_data.h.

Referenced by hal::WaveEditTable::flags(), hal::WaveLoaderThread::run(), hal::WaveItem::startGeneratePainted(), stringValue(), strValue(), hal::WaveDataGroup::WaveDataGroup(), and hal::WaveEditDialog::WaveEditDialog().

◆ clear()

void hal::WaveData::clear ( )
inline

Definition at line 136 of file wave_data.h.

References QMap::clear(), and mData.

Referenced by hal::WaveDataList::setUserTimeframe().

◆ composedType()

SaleaeDirectoryNetEntry::Type hal::WaveData::composedType ( ) const

Definition at line 132 of file wave_data.cpp.

References hal::SaleaeDirectoryNetEntry::Boolean, BooleanNet, hal::SaleaeDirectoryNetEntry::Group, NetGroup, hal::SaleaeDirectoryNetEntry::None, hal::SaleaeDirectoryNetEntry::Trigger, and TriggerTime.

Referenced by hal::WaveDataRoot::dump(), and hal::WaveDataTrigger::set_filter_wave().

◆ data()

const QMap<u64,int>& hal::WaveData::data ( ) const
inline

Definition at line 108 of file wave_data.h.

References mData.

Referenced by hal::WaveItem::cursorValue(), hal::WaveItem::dump(), hal::WaveDataTrigger::intValue(), hal::WaveDataBoolean::recalcData(), hal::WaveDataTrigger::recalcData(), hal::WaveDataGroup::recalcData(), hal::WaveLoaderThread::run(), hal::WaveLoaderBackbone::run(), hal::WaveItem::startGeneratePainted(), hal::WaveDataGroup::WaveDataGroup(), and hal::WaveEditTable::WaveEditTable().

◆ dataIndex()

int hal::WaveData::dataIndex ( ) const

Definition at line 178 of file wave_data.cpp.

References mWaveDataList, and hal::WaveDataList::waveIndexByNetId().

Referenced by hal::WaveFormPainted::generateBoolean().

◆ fileIndex()

int hal::WaveData::fileIndex ( ) const
inline

Definition at line 109 of file wave_data.h.

Referenced by hal::WaveItem::handleWaveLoaderFinished(), hal::WaveLoaderThread::run(), hal::WaveValueThread::run(), and hal::WaveItem::startLoader().

◆ fileName()

std::string hal::WaveData::fileName ( ) const

Definition at line 519 of file wave_data.cpp.

References hal::SaleaeDirectory::get_datafile_path(), mWaveDataList, and hal::WaveDataList::saleaeDirectory().

Referenced by hal::WaveEditTable::WaveEditTable().

◆ fileSize()

u64 hal::WaveData::fileSize ( ) const
inline

Definition at line 110 of file wave_data.h.

Referenced by hal::WaveWidget::addableEntries(), hal::WaveDataGroup::recalcData(), hal::WaveLoaderThread::run(), hal::WaveLoaderBackbone::run(), hal::WaveItem::startGeneratePainted(), and hal::WaveEditTable::WaveEditTable().

◆ get_events()

std::vector< std::pair< u64, int > > hal::WaveData::get_events ( u64  t0 = 0) const

Definition at line 194 of file wave_data.cpp.

References BooleanNet, hal::WaveDataBoolean::children(), hal::WaveDataTrigger::children(), hal::WaveDataGroup::children(), QMap::constEnd(), hal::SaleaeInputFile::get_buffered_data(), hal::SaleaeDirectory::get_datafile_path(), hal::SaleaeInputFile::get_file_position(), hal::SaleaeDirectory::get_filename(), hal::WaveDataTrigger::get_filter_wave(), LoadAllData, loadPolicy(), QMap::lowerBound(), hal::SaleaeDataBuffer::mCount, mData, hal::SaleaeDataTuple::mTime, hal::SaleaeDataBuffer::mTimeArray, hal::SaleaeDataTuple::mValue, hal::SaleaeDataBuffer::mValueArray, mWaveDataList, NetGroup, hal::WaveDataProvider::nextPoint(), hal::WaveDataList::saleaeDirectory(), hal::SaleaeDataTuple::sReadError, hal::NetlistSimulatorControllerPlugin::sSimulationSettings, hal::WaveDataProvider::startValue(), hal::WaveDataTrigger::toValueList(), TriggerTime, and hal::WaveDataBoolean::truthTable().

Referenced by hal::PerfTestPlugin::cmp_sim_data(), get_triggered_events(), isEqual(), and hal::PYBIND11_PLUGIN().

◆ get_name()

std::string hal::WaveData::get_name ( ) const
inline

Definition at line 132 of file wave_data.h.

References QString::toStdString().

Referenced by hal::PYBIND11_PLUGIN(), and hal::WaveDataGroup::restoreIndex().

◆ get_triggered_events()

std::vector< std::pair< u64, int > > hal::WaveData::get_triggered_events ( const WaveDataTrigger *  wdTrig,
u64  t0 = 0
)

Definition at line 183 of file wave_data.cpp.

References get_events(), and intValue().

Referenced by hal::PYBIND11_PLUGIN().

◆ get_value_at()

int hal::WaveData::get_value_at ( u64  t)

Definition at line 125 of file wave_data.cpp.

References intValue(), LoadAllData, loadDataUnlessAlreadyLoaded(), and loadPolicy().

Referenced by hal::PYBIND11_PLUGIN(), and hal::WaveDataBoolean::recalcData().

◆ hasSubscriber()

bool hal::WaveData::hasSubscriber ( ) const
inline

Definition at line 145 of file wave_data.h.

◆ id()

u32 hal::WaveData::id ( ) const
inline

Definition at line 103 of file wave_data.h.

Referenced by hal::WaveDataList::add(), hal::NetlistSimulatorController::add_boolean_accept_list_waveform(), hal::NetlistSimulatorController::add_boolean_expression_waveform(), hal::NetlistSimulatorController::add_trigger_time(), hal::NetlistSimulatorController::add_waveform_group(), hal::WaveWidget::addableEntries(), hal::WaveDataList::addOrReplace(), hal::WaveTreeModel::addWaves(), hal::BooleanDialog::BooleanDialog(), hal::WaveTreeModel::booleanId(), hal::WaveTreeModel::data(), hal::WaveDataRoot::dump(), hal::WaveItem::dump(), hal::VcdSerializer::exportCsv(), hal::VcdSerializer::exportVcd(), hal::WaveFormPainted::generateGroup(), hal::WaveTreeModel::groupId(), hal::WaveTreeModel::handleBooleanAdded(), hal::WaveTreeModel::handleGroupAboutToBeRemoved(), hal::WaveTreeModel::handleGroupAdded(), hal::WaveTreeModel::handleTriggerAdded(), hal::WaveTreeModel::hashIndex(), hal::WaveTreeModel::insertExisting(), hal::WaveTreeModel::insertItem(), hal::PYBIND11_PLUGIN(), hal::WaveWidget::refreshNetNames(), hal::WaveDataGroup::remove_waveform(), hal::WaveTreeModel::removeGroup(), hal::WaveTreeModel::removeItemFromHash(), hal::NetlistSimulatorController::rename_waveform(), hal::WaveTreeModel::restore(), hal::WaveTreeView::selectionChanged(), hal::WaveDataTrigger::set_filter_wave(), hal::TriggerDialog::TriggerDialog(), hal::WaveTreeModel::triggerId(), hal::WaveDataList::updateWaveData(), hal::WaveDataList::waveDataById(), hal::WaveDataGroupIndex::WaveDataGroupIndex(), hal::WaveTreeModel::waveDataIndexSet(), hal::WaveDataProviderGroup::WaveDataProviderGroup(), hal::WaveDataProviderTrigger::WaveDataProviderTrigger(), and hal::WaveTreeModel::waveIndex().

◆ insert()

void hal::WaveData::insert ( u64  t,
int  val
)
inline

Definition at line 137 of file wave_data.h.

References QMap::insert(), and mData.

◆ insertBooleanValueWithoutSync()

void hal::WaveData::insertBooleanValueWithoutSync ( u64  t,
BooleanFunction::Value  bval
)

Definition at line 103 of file wave_data.cpp.

References QMap::constBegin(), QMap::insert(), QMap::isEmpty(), mData, mDirty, and QMap::upperBound().

Referenced by hal::WaveDataList::insertBooleanValue(), and hal::NetlistSimulatorController::set_input().

◆ intValue()

int hal::WaveData::intValue ( double  t) const
virtual

Reimplemented in hal::WaveDataGroup, hal::WaveDataTrigger, and hal::WaveDataBoolean.

Definition at line 454 of file wave_data.cpp.

References QMap::firstKey(), hal::SaleaeDirectory::get_datafile_path(), hal::SaleaeInputFile::get_int_value(), QMap::isEmpty(), QMap::lastKey(), LoadAllData, loadPolicy(), LoadTimeframe, mData, mWaveDataList, hal::WaveDataList::saleaeDirectory(), timeIterator(), and QMap::value().

Referenced by hal::WaveItem::cursorValue(), get_triggered_events(), get_value_at(), hal::WaveDataBoolean::intValue(), and hal::WaveDataTrigger::recalcData().

◆ isDirty()

bool hal::WaveData::isDirty ( ) const
inline

Definition at line 107 of file wave_data.h.

References mDirty.

◆ isEqual()

bool hal::WaveData::isEqual ( const WaveData &  other,
int  tolerance = 0
) const

Definition at line 144 of file wave_data.cpp.

References QMap::begin(), QMap::constBegin(), QMap::end(), get_events(), LoadAllData, loadPolicy(), mData, and QMap::size().

◆ loadDataUnlessAlreadyLoaded()

void hal::WaveData::loadDataUnlessAlreadyLoaded ( )

Definition at line 264 of file wave_data.cpp.

References loadSaleae(), mData, and QMap::size().

Referenced by hal::WaveItem::cursorValue(), get_value_at(), hal::WaveDataTrigger::intValue(), hal::WaveDataBoolean::recalcData(), hal::WaveDataTrigger::recalcData(), and hal::WaveDataList::waveDataByNet().

◆ loadPolicy()

WaveData::LoadPolicy hal::WaveData::loadPolicy ( ) const
virtual

Reimplemented in hal::WaveDataGroup, hal::WaveDataTrigger, and hal::WaveDataBoolean.

Definition at line 75 of file wave_data.cpp.

References LoadAllData, LoadTimeframe, hal::SimulationSettings::maxSizeLoadable(), hal::NetlistSimulatorControllerPlugin::sSimulationSettings, and TooBigToLoad.

Referenced by hal::WaveItem::cursorValue(), get_events(), get_value_at(), intValue(), isEqual(), hal::WaveDataBoolean::loadPolicy(), hal::WaveDataTrigger::loadPolicy(), neighborTransition(), hal::WaveDataGroup::recalcData(), hal::WaveLoaderThread::run(), hal::WaveDataList::setUserTimeframe(), hal::WaveItem::startGeneratePainted(), hal::WaveDataList::updateFromSaleae(), and hal::WaveDataList::waveDataByNet().

◆ loadSaleae()

bool hal::WaveData::loadSaleae ( const WaveDataTimeframe &  tframe = WaveDataTimeframe())

Definition at line 270 of file wave_data.cpp.

References hal::SaleaeInputFile::get_buffered_data(), hal::SaleaeDirectory::get_datafile_path(), hal::WaveDataTimeframe::hasUserTimeframe(), QMap::insert(), hal::SaleaeDataBuffer::mCount, mData, mDirty, hal::SaleaeDataBuffer::mTimeArray, hal::SaleaeDataBuffer::mValueArray, mWaveDataList, resetWave(), hal::WaveDataList::saleaeDirectory(), hal::WaveDataTimeframe::sceneMaxTime(), hal::WaveDataTimeframe::sceneMinTime(), hal::NetlistSimulatorControllerPlugin::sSimulationSettings, and hal::BooleanFunction::X.

Referenced by hal::WaveWidget::addSelectedResults(), loadDataUnlessAlreadyLoaded(), hal::WaveItem::loadSaleae(), hal::WaveDataGroup::recalcData(), hal::WaveDataList::updateFromSaleae(), hal::WaveDataList::waveDataByNet(), and hal::WaveEditTable::WaveEditTable().

◆ maxTime()

u64 hal::WaveData::maxTime ( ) const

Definition at line 525 of file wave_data.cpp.

References QMap::isEmpty(), QMap::lastKey(), and mData.

Referenced by saveSaleae().

◆ name()

QString hal::WaveData::name ( ) const
inline

Definition at line 104 of file wave_data.h.

Referenced by hal::WaveWidget::addableEntries(), hal::BooleanDialog::BooleanDialog(), hal::PerfTestPlugin::cmp_sim_data(), hal::WaveTreeModel::data(), hal::WaveDataRoot::dump(), hal::WaveItem::dump(), hal::VcdSerializer::exportCsv(), hal::VcdSerializer::exportVcd(), hal::VcdSerializerElement::name(), hal::WaveTreeModel::netName(), hal::WaveWidget::refreshNetNames(), hal::WaveDataTrigger::set_filter_wave(), hal::TriggerDialog::TriggerDialog(), hal::WaveDataList::updateFromSaleae(), hal::WaveDataList::waveDataByName(), hal::WaveDataGroup::WaveDataGroup(), hal::WaveDataProviderGroup::WaveDataProviderGroup(), hal::WaveDataProviderTrigger::WaveDataProviderTrigger(), and hal::WaveEditDialog::WaveEditDialog().

◆ neighborTransition()

u64 hal::WaveData::neighborTransition ( double  t,
bool  next
) const
virtual

Reimplemented in hal::WaveDataTrigger.

Definition at line 360 of file wave_data.cpp.

References QMap::begin(), BooleanNet, hal::WaveDataBoolean::children(), hal::WaveDataGroup::children(), QMap::end(), QMap::firstKey(), hal::SaleaeDirectory::get_datafile_path(), hal::SaleaeInputFile::get_file_position(), hal::SaleaeInputFile::get_next_value(), hal::SaleaeInputFile::header(), QMap::isEmpty(), QList::isEmpty(), QMap::key(), QMap::lastKey(), LoadAllData, loadPolicy(), LoadTimeframe, QMap::lowerBound(), mData, hal::SaleaeDataTuple::mTime, mWaveDataList, NetGroup, hal::SaleaeHeader::numTransitions(), hal::SaleaeDataTuple::readError(), hal::WaveDataList::saleaeDirectory(), hal::SaleaeInputFile::set_file_position(), and QMap::upperBound().

◆ netType()

NetType hal::WaveData::netType ( ) const
inline

Definition at line 105 of file wave_data.h.

Referenced by hal::WaveItem::cursorValue(), hal::WaveTreeModel::hashIndex(), hal::WaveTreeModel::insertExisting(), hal::WaveTreeModel::insertItem(), hal::WaveItem::isBoolean(), hal::WaveItem::isGroup(), hal::WaveItem::isTrigger(), hal::WaveTreeModel::removeItemFromHash(), hal::WaveLoaderThread::run(), hal::WaveLoaderBackbone::run(), hal::WaveDataTrigger::set_filter_wave(), hal::WaveItem::startGeneratePainted(), and hal::WaveEditDialog::WaveEditDialog().

◆ removeSubscriber()

void hal::WaveData::removeSubscriber ( )
inline

Definition at line 147 of file wave_data.h.

Referenced by hal::WaveItem::~WaveItem().

◆ rename()

bool hal::WaveData::rename ( const QString &  nam)

Definition at line 89 of file wave_data.cpp.

References mDirty.

Referenced by hal::NetlistSimulatorController::rename_waveform(), hal::WaveDataList::updateGroupName(), hal::WaveDataBoolean::WaveDataBoolean(), hal::WaveDataGroup::WaveDataGroup(), and hal::WaveDataTrigger::WaveDataTrigger().

◆ resetWave()

void hal::WaveData::resetWave ( )
protected

Definition at line 64 of file wave_data.cpp.

References QMap::clear(), and mData.

Referenced by loadSaleae(), and hal::WaveDataClock::setMaxTime().

◆ saveSaleae()

void hal::WaveData::saveSaleae ( )

Definition at line 320 of file wave_data.cpp.

References QDir::absolutePath(), hal::SaleaeDirectory::add_or_replace_net(), hal::SaleaeDirectoryNetEntry::addIndex(), QMap::constBegin(), QMap::constEnd(), QDir::exists(), QString::fromStdString(), hal::SaleaeDirectory::get_datafile_index(), hal::SaleaeDirectory::get_datafile_path(), hal::SaleaeDirectory::get_directory(), hal::SaleaeDirectory::get_next_available_index(), maxTime(), mData, QDir::mkpath(), hal::SaleaeDataBuffer::mTimeArray, hal::SaleaeDataBuffer::mValueArray, mWaveDataList, hal::SaleaeOutputFile::put_data(), hal::WaveDataList::saleaeDirectory(), hal::gate_library_manager::save(), QMap::size(), and QString::toStdString().

Referenced by hal::WaveDataList::add(), hal::WaveDataList::insertBooleanValue(), and hal::WaveDataList::updateWaveData().

◆ setBits()

void hal::WaveData::setBits ( int  bts)

Definition at line 97 of file wave_data.cpp.

References mDirty.

Referenced by hal::WaveDataGroup::WaveDataGroup().

◆ setData()

void hal::WaveData::setData ( const QMap< u64, int > &  dat)

Definition at line 119 of file wave_data.cpp.

References mData, and mDirty.

Referenced by hal::WaveLoaderThread::run().

◆ setDirty()

void hal::WaveData::setDirty ( bool  dty)
inline

Definition at line 117 of file wave_data.h.

References mDirty.

Referenced by hal::WaveItem::setState().

◆ setFileIndex()

void hal::WaveData::setFileIndex ( int  saleaIndex)
inline

Definition at line 118 of file wave_data.h.

Referenced by hal::WaveDataList::updateFromSaleae().

◆ setFileSize()

void hal::WaveData::setFileSize ( u64  siz)

Definition at line 69 of file wave_data.cpp.

Referenced by hal::WaveDataList::updateFromSaleae().

◆ setId()

void hal::WaveData::setId ( u32  id_)

Definition at line 83 of file wave_data.cpp.

References mDirty.

◆ setTimeframeSize()

void hal::WaveData::setTimeframeSize ( u64  siz)
inline

Definition at line 120 of file wave_data.h.

Referenced by hal::WaveLoaderThread::run(), and hal::WaveDataList::setUserTimeframe().

◆ setValueBase()

void hal::WaveData::setValueBase ( int  bas)
inline

Definition at line 142 of file wave_data.h.

References mValueBase.

◆ setWaveDataList()

void hal::WaveData::setWaveDataList ( WaveDataList *  wdList)
inline

Definition at line 121 of file wave_data.h.

References mWaveDataList.

Referenced by hal::WaveDataList::add().

◆ stringValue()

QString hal::WaveData::stringValue ( int  val,
int  bits,
int  base
)
static

Definition at line 489 of file wave_data.cpp.

References QString::arg(), bits(), and QString::number().

Referenced by hal::WaveFormPrimitiveValue::paint(), and strValue().

◆ strValue() [1/3]

QString hal::WaveData::strValue ( const QMap< u64, int >::const_iterator &  it) const

Definition at line 478 of file wave_data.cpp.

References QMap::constEnd(), mData, strValue(), and QMap::value().

◆ strValue() [2/3]

QString hal::WaveData::strValue ( double  t) const

Definition at line 471 of file wave_data.cpp.

References QMap::isEmpty(), mData, strValue(), and timeIterator().

◆ strValue() [3/3]

QString hal::WaveData::strValue ( int  val) const

Definition at line 484 of file wave_data.cpp.

References bits(), mValueBase, and stringValue().

Referenced by hal::WaveEditTable::data(), hal::WaveTreeModel::data(), and strValue().

◆ timeIterator()

QMap< u64, int >::const_iterator hal::WaveData::timeIterator ( double  t) const
protected

Definition at line 352 of file wave_data.cpp.

References QMap::constBegin(), QMap::constEnd(), mData, and QMap::upperBound().

Referenced by intValue(), and strValue().

◆ valueBase()

int hal::WaveData::valueBase ( ) const
inline

Definition at line 111 of file wave_data.h.

References mValueBase.

Referenced by hal::WaveFormPainted::generateGroup(), hal::WaveLoaderThread::run(), and hal::WaveItem::startGeneratePainted().

Member Data Documentation

◆ mData

QMap<u64,int> hal::WaveData::mData
protected

Definition at line 91 of file wave_data.h.

Referenced by clear(), data(), get_events(), insert(), insertBooleanValueWithoutSync(), intValue(), isEqual(), loadDataUnlessAlreadyLoaded(), loadSaleae(), maxTime(), neighborTransition(), hal::WaveDataTrigger::neighborTransition(), hal::WaveDataBoolean::recalcData(), hal::WaveDataTrigger::recalcData(), hal::WaveDataGroup::recalcData(), resetWave(), saveSaleae(), setData(), strValue(), and timeIterator().

◆ mDirty

bool hal::WaveData::mDirty
protected

Definition at line 92 of file wave_data.h.

Referenced by insertBooleanValueWithoutSync(), isDirty(), loadSaleae(), hal::WaveDataGroup::recalcData(), rename(), setBits(), setData(), setDirty(), and setId().

◆ mValueBase

int hal::WaveData::mValueBase
protected

Definition at line 90 of file wave_data.h.

Referenced by setValueBase(), strValue(), and valueBase().

◆ mWaveDataList

WaveDataList* hal::WaveData::mWaveDataList
protected

Definition at line 93 of file wave_data.h.

Referenced by hal::WaveDataGroup::add_waveform(), hal::WaveDataGroup::addNet(), hal::WaveDataGroup::childrenWaveIndex(), dataIndex(), fileName(), get_events(), intValue(), loadSaleae(), neighborTransition(), hal::WaveDataGroup::recalcData(), hal::WaveDataGroup::remove_waveform(), hal::WaveDataGroup::restoreIndex(), saveSaleae(), hal::WaveDataTrigger::set_filter_wave(), setWaveDataList(), hal::WaveDataBoolean::WaveDataBoolean(), hal::WaveDataGroup::WaveDataGroup(), hal::WaveDataTrigger::WaveDataTrigger(), and hal::WaveDataGroup::~WaveDataGroup().

The documentation for this class was generated from the following files:
