hal::WaveDataTrigger Class Reference

#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data.h>

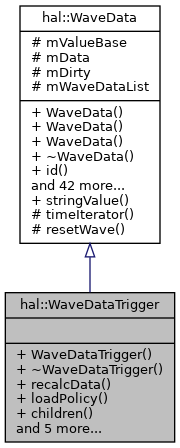

Inheritance diagram for hal::WaveDataTrigger:
Inheritance graph

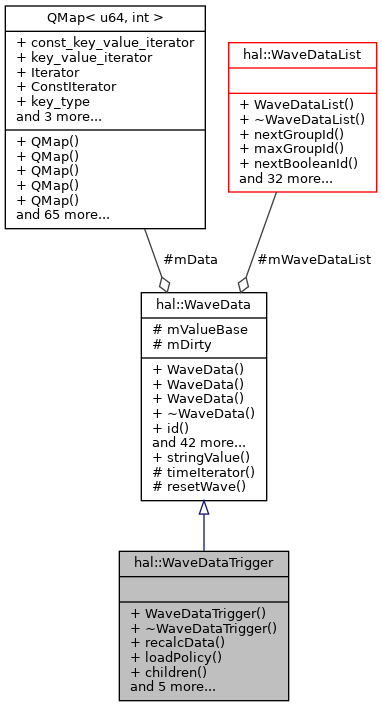

Collaboration diagram for hal::WaveDataTrigger:
Collaboration graph

Public Member Functions

 WaveDataTrigger (WaveDataList *wdList, const QList< WaveData * > &wdTrigger, const QList< int > &toVal=QList< int >())

 ~WaveDataTrigger ()

void recalcData ()

virtual LoadPolicy loadPolicy () const override

QList< WaveData * > children () const

virtual u64 neighborTransition (double t, bool next) const override

virtual int intValue (double t) const override

void set_filter_wave (WaveData *wd)

QList< int > toValueList () const

WaveData * get_filter_wave () const

- Public Member Functions inherited from hal::WaveData
 WaveData (const WaveData &other)

 WaveData (u32 id_, const QString &nam, NetType tp=RegularNet, const QMap< u64, int > &dat=QMap< u64, int >())

 WaveData (const Net *n, NetType tp=RegularNet)

virtual ~WaveData ()

u32 id () const

QString name () const

NetType netType () const

virtual int bits () const

bool isDirty () const

const QMap< u64, int > & data () const

int fileIndex () const

u64 fileSize () const

int valueBase () const

std::string fileName () const

SaleaeDirectoryNetEntry::Type composedType () const

void setId (u32 id_)

bool rename (const QString &nam)

void setBits (int bts)

void setDirty (bool dty)

void setFileIndex (int saleaIndex)

void setFileSize (u64 siz)

void setTimeframeSize (u64 siz)

void setWaveDataList (WaveDataList *wdList)

int dataIndex () const

void loadDataUnlessAlreadyLoaded ()

bool loadSaleae (const WaveDataTimeframe &tframe=WaveDataTimeframe())

void saveSaleae ()

void setData (const QMap< u64, int > &dat)

int get_value_at (u64 t)

std::string get_name () const

std::vector< std::pair< u64, int > > get_events (u64 t0=0) const

std::vector< std::pair< u64, int > > get_triggered_events (const WaveDataTrigger *wdTrig, u64 t0=0)

u64 maxTime () const

void clear ()

void insert (u64 t, int val)

void insertBooleanValueWithoutSync (u64 t, BooleanFunction::Value bval)

QString strValue (int val) const

QString strValue (double t) const

QString strValue (const QMap< u64, int >::const_iterator &it) const

void setValueBase (int bas)

bool isEqual (const WaveData &other, int tolerance=0) const

bool hasSubscriber () const

void addSubscriber ()

void removeSubscriber ()


Additional Inherited Members

- Public Types inherited from hal::WaveData
enum  NetType {
  RegularNet , InputNet , OutputNet , ClockNet ,
  BooleanNet , TriggerTime , NetGroup
}

enum  LoadPolicy { TooBigToLoad , LoadTimeframe , LoadAllData }

- Static Public Member Functions inherited from hal::WaveData
static QString stringValue (int val, int bits, int base)

- Protected Member Functions inherited from hal::WaveData
QMap< u64, int >::const_iterator timeIterator (double t) const

void resetWave ()

- Protected Attributes inherited from hal::WaveData
int mValueBase

QMap< u64, int > mData

bool mDirty

WaveDataList * mWaveDataList


Detailed Description

A waveform that marks the points in time at which a set of other waveforms shows a given transition.

Definition at line 303 of file wave_data.h.

Constructor & Destructor Documentation

◆ WaveDataTrigger()

hal::WaveDataTrigger::WaveDataTrigger ( WaveDataList *  wdList,
const QList< WaveData * > &  wdTrigger,
const QList< int > &  toVal = QList<int>()
)

Definition at line 781 of file wave_data.cpp.

References QList::at(), hal::WaveData::mWaveDataList, hal::WaveData::rename(), and QList::size().

◆ ~WaveDataTrigger()

hal::WaveDataTrigger::~WaveDataTrigger ( )

Definition at line 799 of file wave_data.cpp.

Member Function Documentation

◆ children()

QList< WaveData * > hal::WaveDataTrigger::children ( ) const

Definition at line 889 of file wave_data.cpp.

References QList::append().

Referenced by hal::WaveData::get_events(), hal::WaveLoaderThread::run(), and hal::WaveLoaderBackbone::run().

◆ get_filter_wave()

WaveData* hal::WaveDataTrigger::get_filter_wave ( ) const
inline

Definition at line 320 of file wave_data.h.

Referenced by hal::WaveData::get_events(), hal::WaveLoaderThread::run(), and hal::WaveLoaderBackbone::run().

◆ intValue()

int hal::WaveDataTrigger::intValue ( double  t) const
overridevirtual

Reimplemented from hal::WaveData.

Definition at line 820 of file wave_data.cpp.

References hal::WaveData::data(), QMap::find(), hal::WaveData::LoadAllData, hal::WaveData::loadDataUnlessAlreadyLoaded(), and loadPolicy().

◆ loadPolicy()

WaveData::LoadPolicy hal::WaveDataTrigger::loadPolicy ( ) const
overridevirtual

Reimplemented from hal::WaveData.

Definition at line 864 of file wave_data.cpp.

References hal::WaveData::LoadAllData, hal::WaveData::loadPolicy(), hal::WaveData::LoadTimeframe, and hal::WaveData::TooBigToLoad.

Referenced by intValue(), neighborTransition(), and recalcData().

◆ neighborTransition()

u64 hal::WaveDataTrigger::neighborTransition ( double  t,
bool  next
) const
overridevirtual

Reimplemented from hal::WaveData.

Definition at line 897 of file wave_data.cpp.

References QMap::constBegin(), QMap::constEnd(), QMap::empty(), QMap::iterator::key(), QMap::const_iterator::key(), loadPolicy(), QMap::lowerBound(), hal::WaveData::mData, hal::WaveData::TooBigToLoad, and QMap::upperBound().

◆ recalcData()

void hal::WaveDataTrigger::recalcData ( )

Definition at line 839 of file wave_data.cpp.

References QMap::clear(), hal::WaveData::data(), QMap::insert(), hal::WaveData::intValue(), hal::WaveData::loadDataUnlessAlreadyLoaded(), loadPolicy(), hal::WaveData::LoadTimeframe, hal::WaveData::mData, and hal::WaveData::TooBigToLoad.

Referenced by hal::WaveItem::cursorValue(), hal::WaveTreeModel::insertItem(), hal::WaveTreeModel::insertTrigger(), and set_filter_wave().

◆ set_filter_wave()

void hal::WaveDataTrigger::set_filter_wave ( WaveData *  wd)

Definition at line 805 of file wave_data.cpp.

References hal::SaleaeDirectory::add_or_replace_composed(), hal::WaveData::composedType(), hal::SaleaeDirectory::get_composed(), hal::WaveData::id(), hal::SaleaeDirectoryComposedEntry::isNull(), hal::WaveData::mWaveDataList, hal::WaveData::name(), hal::WaveData::NetGroup, hal::WaveData::netType(), recalcData(), hal::WaveDataList::saleaeDirectory(), hal::gate_library_manager::save(), hal::SaleaeDirectoryComposedEntry::set_filter_entry(), QString::toStdString(), hal::SaleaeDirectoryNetEntry::Trigger, hal::WaveData::TriggerTime, and hal::SaleaeDirectoryNetEntry::uniqueKey().

Referenced by hal::WaveTreeModel::insertTrigger(), and hal::PYBIND11_PLUGIN().

◆ toValueList()

QList< int > hal::WaveDataTrigger::toValueList ( ) const

Definition at line 916 of file wave_data.cpp.

References QList::append().

Referenced by hal::WaveData::get_events(), hal::WaveLoaderThread::run(), and hal::WaveLoaderBackbone::run().

The documentation for this class was generated from the following files:
