hal::SimulationInput::Clock Struct Reference

#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/simulation_input.h>

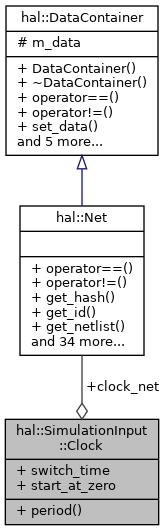

Collaboration diagram for hal::SimulationInput::Clock:

Public Member Functions
u64	period () const

Public Attributes
const Net *	clock_net
u64	switch_time
bool	start_at_zero

Detailed Description

A clock signal, described by its net, its period, and its start value.

Definition at line 63 of file simulation_input.h.

Member Function Documentation

period()

u64 hal::SimulationInput::Clock::period ( ) const

inline

Definition at line 68 of file simulation_input.h.

References switch_time.

Member Data Documentation

clock_net

const Net* hal::SimulationInput::Clock::clock_net

Definition at line 65 of file simulation_input.h.

Referenced by hal::NetlistSimulatorController::add_clock_period(), and hal::WaveDataClock::WaveDataClock().

start_at_zero

bool hal::SimulationInput::Clock::start_at_zero

Definition at line 67 of file simulation_input.h.

Referenced by hal::NetlistSimulatorController::add_clock_period(), hal::WaveItem::cursorValue(), and hal::WaveDataClock::WaveDataClock().

switch_time

u64 hal::SimulationInput::Clock::switch_time

Definition at line 66 of file simulation_input.h.

Referenced by hal::NetlistSimulatorController::add_clock_period(), hal::WaveItem::cursorValue(), hal::WaveDataProviderClock::nextPoint(), period(), hal::WaveDataProviderClock::startValue(), and hal::WaveDataClock::WaveDataClock().

---

The documentation for this struct was generated from the following file:

• plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/simulation_input.h
