hal::SimulationInput::NetGroup Struct Reference

#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/simulation_input.h>

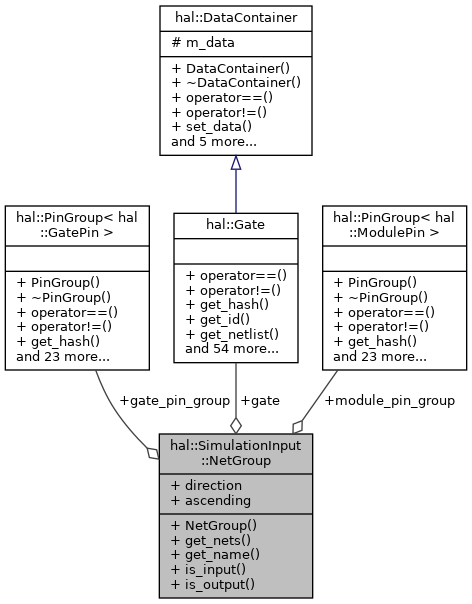

Collaboration diagram for hal::SimulationInput::NetGroup:

Public Member Functions
	NetGroup ()
std::vector< const Net * >	get_nets () const
std::string	get_name () const
bool	is_input () const
bool	is_output () const

Public Attributes
DirectionType	direction
const Gate *	gate
PinGroup< ModulePin > *	module_pin_group
PinGroup< GatePin > *	gate_pin_group
bool	ascending

Detailed Description

A group of nets of the simulated netlist that belong together, e.g., the pins of a pin group.

Definition at line 74 of file simulation_input.h.

Constructor & Destructor Documentation

NetGroup()

hal::SimulationInput::NetGroup::NetGroup ( )

inline

Definition at line 81 of file simulation_input.h.

Member Function Documentation

get_name()

std::string hal::SimulationInput::NetGroup::get_name

(

)

const

Definition at line 33 of file simulation_input.cpp.

get_nets()

std::vector< const Net * > hal::SimulationInput::NetGroup::get_nets

(

)

const

Definition at line 10 of file simulation_input.cpp.

References gate, gate_pin_group, hal::Gate::get_fan_in_net(), hal::Gate::get_fan_out_net(), hal::inout, hal::input, and module_pin_group.

is_input()

bool hal::SimulationInput::NetGroup::is_input ( ) const

inline

Definition at line 84 of file simulation_input.h.

References direction, and hal::SimulationInput::InputOnly.

is_output()

bool hal::SimulationInput::NetGroup::is_output ( ) const

inline

Definition at line 85 of file simulation_input.h.

References direction, and hal::SimulationInput::OutputOnly.

Member Data Documentation

ascending

bool hal::SimulationInput::NetGroup::ascending

Definition at line 80 of file simulation_input.h.

Referenced by hal::SimulationInput::compute_net_groups().

direction

DirectionType hal::SimulationInput::NetGroup::direction

Definition at line 76 of file simulation_input.h.

Referenced by hal::SimulationInput::compute_net_groups(), is_input(), and is_output().

gate

const Gate* hal::SimulationInput::NetGroup::gate

Definition at line 77 of file simulation_input.h.

Referenced by hal::SimulationInput::compute_net_groups(), and get_nets().

gate_pin_group

PinGroup<GatePin>* hal::SimulationInput::NetGroup::gate_pin_group

Definition at line 79 of file simulation_input.h.

Referenced by hal::SimulationInput::compute_net_groups(), and get_nets().

module_pin_group

PinGroup<ModulePin>* hal::SimulationInput::NetGroup::module_pin_group

Definition at line 78 of file simulation_input.h.

Referenced by hal::SimulationInput::compute_net_groups(), and get_nets().

---

The documentation for this struct was generated from the following files:

• plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/simulation_input.h
• plugins/simulator/netlist_simulator_controller/src/simulation_input.cpp
