#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data.h>

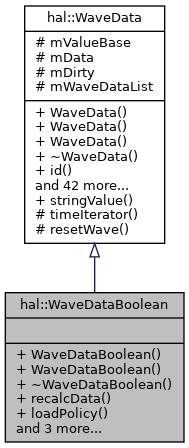

Inheritance diagram for hal::WaveDataBoolean:

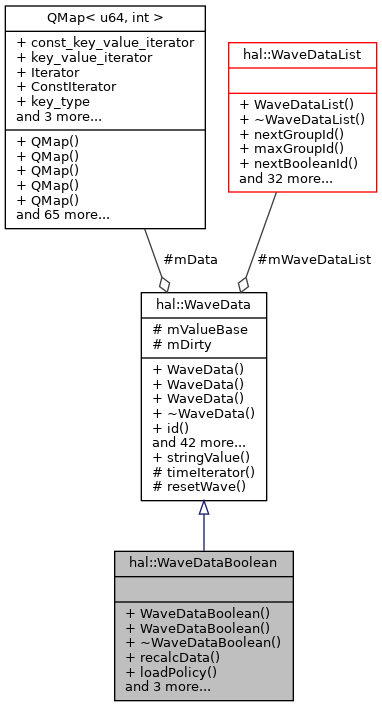

Collaboration diagram for hal::WaveDataBoolean:

Public Member Functions
	WaveDataBoolean (WaveDataList *wdList, QString boolFunc)

	WaveDataBoolean (WaveDataList wdList, const QList< WaveData > &boolInput, const QList< int > &acceptMask)

	~WaveDataBoolean ()

void	recalcData ()

virtual LoadPolicy	loadPolicy () const override

QList< WaveData * >	children () const

const char *	truthTable () const

virtual int	intValue (double t) const override

Public Member Functions inherited from hal::WaveData
	WaveData (const WaveData &other)

	WaveData (u32 id_, const QString &nam, NetType tp=RegularNet, const QMap< u64, int > &dat=QMap< u64, int >())

	WaveData (const Net *n, NetType tp=RegularNet)

virtual	~WaveData ()

u32	id () const

QString	name () const

NetType	netType () const

virtual int	bits () const

bool	isDirty () const

const QMap< u64, int > &	data () const

int	fileIndex () const

u64	fileSize () const

int	valueBase () const

std::string	fileName () const

SaleaeDirectoryNetEntry::Type	composedType () const

void	setId (u32 id_)

bool	rename (const QString &nam)

void	setBits (int bts)

void	setDirty (bool dty)

void	setFileIndex (int saleaIndex)

void	setFileSize (u64 siz)

void	setTimeframeSize (u64 siz)

void	setWaveDataList (WaveDataList *wdList)

int	dataIndex () const

virtual u64	neighborTransition (double t, bool next) const

void	loadDataUnlessAlreadyLoaded ()

bool	loadSaleae (const WaveDataTimeframe &tframe=WaveDataTimeframe())

void	saveSaleae ()

void	setData (const QMap< u64, int > &dat)

int	get_value_at (u64 t)

std::string	get_name () const

std::vector< std::pair< u64, int > >	get_events (u64 t0=0) const

std::vector< std::pair< u64, int > >	get_triggered_events (const WaveDataTrigger *wdTrig, u64 t0=0)

u64	maxTime () const

void	clear ()

void	insert (u64 t, int val)

void	insertBooleanValueWithoutSync (u64 t, BooleanFunction::Value bval)

QString	strValue (int val) const

QString	strValue (double t) const

QString	strValue (const QMap< u64, int >::const_iterator &it) const

void	setValueBase (int bas)

bool	isEqual (const WaveData &other, int tolerance=0) const

bool	hasSubscriber () const

void	addSubscriber ()

void	removeSubscriber ()

Additional Inherited Members
Public Types inherited from hal::WaveData
enum	NetType { RegularNet , InputNet , OutputNet , ClockNet , BooleanNet , TriggerTime , NetGroup }

enum	LoadPolicy { TooBigToLoad , LoadTimeframe , LoadAllData }

Static Public Member Functions inherited from hal::WaveData
static QString	stringValue (int val, int bits, int base)

Protected Member Functions inherited from hal::WaveData
QMap< u64, int >::const_iterator	timeIterator (double t) const

void	resetWave ()

Protected Attributes inherited from hal::WaveData
int	mValueBase

QMap< u64, int >	mData

bool	mDirty

WaveDataList *	mWaveDataList

Detailed Description

A waveform that is computed from other waveforms by evaluating a Boolean function on them.

Definition at line 283 of file wave_data.h.

Constructor & Destructor Documentation

◆ WaveDataBoolean() [1/2]

hal::WaveDataBoolean::WaveDataBoolean	(	WaveDataList *	wdList,
		QString	boolFunc
	)

Definition at line 585 of file wave_data.cpp.

References hal::BooleanFunction::from_string(), hal::WaveData::mWaveDataList, hal::BooleanFunction::ONE, QString::toStdString(), hal::WaveDataList::waveDataByName(), hal::BooleanFunction::X, hal::BooleanFunction::Z, and hal::BooleanFunction::ZERO.

◆ WaveDataBoolean() [2/2]

hal::WaveDataBoolean::WaveDataBoolean	(	WaveDataList *	wdList,
		const QList< WaveData * > &	boolInput,
		const QList< int > &	acceptMask
	)

Definition at line 553 of file wave_data.cpp.

References QList::at(), hal::WaveData::mWaveDataList, and hal::WaveData::rename().

◆ ~WaveDataBoolean()

hal::WaveDataBoolean::~WaveDataBoolean ( )

Definition at line 675 of file wave_data.cpp.

Member Function Documentation

◆ children()

QList< WaveData * > hal::WaveDataBoolean::children ( ) const

Definition at line 738 of file wave_data.cpp.

References QList::append().

Referenced by hal::WaveFormPainted::generateBoolean(), hal::WaveData::get_events(), hal::WaveData::neighborTransition(), hal::WaveLoaderThread::run(), and hal::WaveLoaderBackbone::run().

◆ intValue()

int hal::WaveDataBoolean::intValue ( double t ) const

overridevirtual

Reimplemented from hal::WaveData.

Definition at line 766 of file wave_data.cpp.

References hal::WaveData::intValue().

◆ loadPolicy()

WaveData::LoadPolicy hal::WaveDataBoolean::loadPolicy ( ) const

overridevirtual

Reimplemented from hal::WaveData.

Definition at line 746 of file wave_data.cpp.

References hal::WaveData::LoadAllData, hal::WaveData::loadPolicy(), hal::WaveData::LoadTimeframe, and hal::WaveData::TooBigToLoad.

Referenced by recalcData().

◆ recalcData()

void hal::WaveDataBoolean::recalcData ( )

Definition at line 681 of file wave_data.cpp.

References QMap::clear(), hal::WaveData::data(), hal::WaveData::get_value_at(), QMap::insert(), QMap::keys(), hal::WaveData::loadDataUnlessAlreadyLoaded(), loadPolicy(), hal::WaveData::LoadTimeframe, hal::WaveData::mData, hal::SaleaeDataTuple::sReadError, and hal::WaveData::TooBigToLoad.

Referenced by hal::WaveItem::cursorValue(), hal::WaveTreeModel::insertBoolean(), and hal::WaveTreeModel::insertItem().

◆ truthTable()

const char* hal::WaveDataBoolean::truthTable ( ) const

inline

Definition at line 296 of file wave_data.h.

Referenced by hal::WaveFormPainted::generateBoolean(), hal::WaveData::get_events(), hal::WaveLoaderThread::run(), and hal::WaveLoaderBackbone::run().

The documentation for this class was generated from the following files:

plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data.h
plugins/simulator/netlist_simulator_controller/src/wave_data.cpp
