#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data.h>

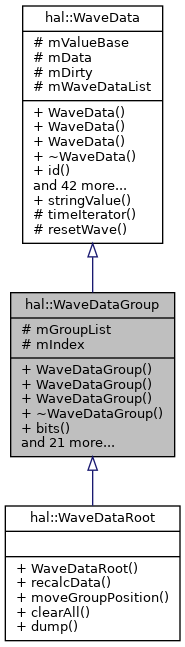

Inheritance diagram for hal::WaveDataGroup:

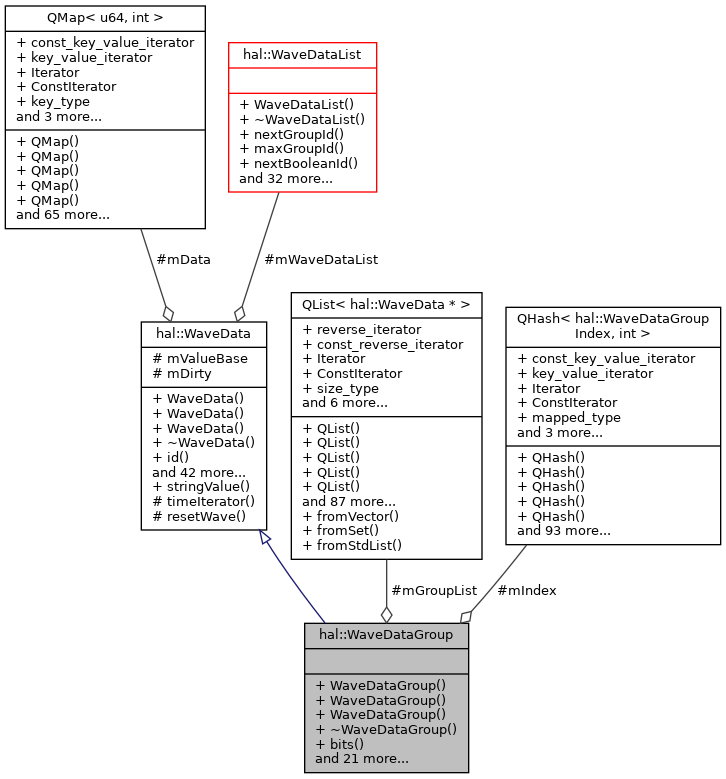

Collaboration diagram for hal::WaveDataGroup:

Public Member Functions
	WaveDataGroup (WaveDataList *wdList, int grpId, const QString &nam)

	WaveDataGroup (WaveDataList *wdList, const QString &nam=QString())

	WaveDataGroup (WaveDataList wdList, const WaveData wdGrp)

virtual	~WaveDataGroup ()

virtual int	bits () const override

virtual int	size () const

void	addNet (const Net *n)

virtual void	insert (int inx, WaveData *wd)

virtual void	addWaves (const QVector< WaveData * > &wds)

void	restoreIndex ()

virtual void	recalcData ()

virtual bool	hasNetId (u32 id) const

virtual QList< WaveData * >	children () const

QList< int >	childrenWaveIndex () const

virtual WaveData *	childAt (int inx) const

virtual WaveData *	removeAt (int inx)

virtual bool	isEmpty () const

virtual void	updateWaveData (WaveData *wd)

virtual int	childIndex (WaveData *wd) const

virtual int	netIndex (u32 id) const

virtual void	replaceChild (WaveData *wd)

virtual LoadPolicy	loadPolicy () const override

void	add_waveform (WaveData *wd)

void	remove_waveform (WaveData *wd)

std::vector< WaveData * >	get_waveforms () const

virtual int	intValue (double t) const override

Public Member Functions inherited from hal::WaveData
	WaveData (const WaveData &other)

	WaveData (u32 id_, const QString &nam, NetType tp=RegularNet, const QMap< u64, int > &dat=QMap< u64, int >())

	WaveData (const Net *n, NetType tp=RegularNet)

virtual	~WaveData ()

u32	id () const

QString	name () const

NetType	netType () const

bool	isDirty () const

const QMap< u64, int > &	data () const

int	fileIndex () const

u64	fileSize () const

int	valueBase () const

std::string	fileName () const

SaleaeDirectoryNetEntry::Type	composedType () const

void	setId (u32 id_)

bool	rename (const QString &nam)

void	setBits (int bts)

void	setDirty (bool dty)

void	setFileIndex (int saleaIndex)

void	setFileSize (u64 siz)

void	setTimeframeSize (u64 siz)

void	setWaveDataList (WaveDataList *wdList)

int	dataIndex () const

virtual u64	neighborTransition (double t, bool next) const

void	loadDataUnlessAlreadyLoaded ()

bool	loadSaleae (const WaveDataTimeframe &tframe=WaveDataTimeframe())

void	saveSaleae ()

void	setData (const QMap< u64, int > &dat)

int	get_value_at (u64 t)

std::string	get_name () const

std::vector< std::pair< u64, int > >	get_events (u64 t0=0) const

std::vector< std::pair< u64, int > >	get_triggered_events (const WaveDataTrigger *wdTrig, u64 t0=0)

u64	maxTime () const

void	clear ()

void	insert (u64 t, int val)

void	insertBooleanValueWithoutSync (u64 t, BooleanFunction::Value bval)

QString	strValue (int val) const

QString	strValue (double t) const

QString	strValue (const QMap< u64, int >::const_iterator &it) const

void	setValueBase (int bas)

bool	isEqual (const WaveData &other, int tolerance=0) const

bool	hasSubscriber () const

void	addSubscriber ()

void	removeSubscriber ()

Protected Attributes
QList< WaveData * >	mGroupList

QHash< WaveDataGroupIndex, int >	mIndex

Protected Attributes inherited from hal::WaveData
int	mValueBase

QMap< u64, int >	mData

bool	mDirty

WaveDataList *	mWaveDataList

Additional Inherited Members
Public Types inherited from hal::WaveData
enum	NetType { RegularNet , InputNet , OutputNet , ClockNet , BooleanNet , TriggerTime , NetGroup }

enum	LoadPolicy { TooBigToLoad , LoadTimeframe , LoadAllData }

Static Public Member Functions inherited from hal::WaveData
static QString	stringValue (int val, int bits, int base)

Protected Member Functions inherited from hal::WaveData
QMap< u64, int >::const_iterator	timeIterator (double t) const

void	resetWave ()

Detailed Description

A group of waveforms that are displayed together and whose values form a single multi-bit value.

Definition at line 326 of file wave_data.h.

Constructor & Destructor Documentation

◆ WaveDataGroup() [1/3]

hal::WaveDataGroup::WaveDataGroup	(	WaveDataList *	wdList,
		int	grpId,
		const QString &	nam
	)

Definition at line 925 of file wave_data.cpp.

References hal::WaveData::mWaveDataList.

◆ WaveDataGroup() [2/3]

hal::WaveDataGroup::WaveDataGroup	(	WaveDataList *	wdList,
		const QString &	nam = `QString()`
	)

Definition at line 932 of file wave_data.cpp.

References QString::isEmpty(), hal::WaveData::mWaveDataList, and hal::WaveData::rename().

◆ WaveDataGroup() [3/3]

hal::WaveDataGroup::WaveDataGroup	(	WaveDataList *	wdList,
		const WaveData *	wdGrp
	)

Definition at line 940 of file wave_data.cpp.

References hal::WaveDataList::add(), QList::append(), hal::WaveData::bits(), QMap::constBegin(), QMap::constEnd(), hal::WaveData::data(), QMap::insert(), mGroupList, mIndex, hal::WaveData::mWaveDataList, hal::WaveData::name(), hal::WaveData::RegularNet, hal::WaveData::setBits(), and hal::WaveData::WaveData().

◆ ~WaveDataGroup()

hal::WaveDataGroup::~WaveDataGroup ( )

virtual

Definition at line 979 of file wave_data.cpp.

References hal::WaveDataList::mDataGroups, and hal::WaveData::mWaveDataList.

Member Function Documentation

◆ add_waveform()

void hal::WaveDataGroup::add_waveform ( WaveData * wd )

Definition at line 986 of file wave_data.cpp.

References hal::WaveDataList::addWavesToGroup(), QVector::append(), and hal::WaveData::mWaveDataList.

Referenced by hal::PYBIND11_PLUGIN().

◆ addNet()

void hal::WaveDataGroup::addNet ( const Net * n )

Definition at line 1033 of file wave_data.cpp.

References hal::WaveDataList::add(), QList::append(), bits(), hal::Net::get_id(), hal::WaveDataList::hasNet(), mGroupList, mIndex, hal::WaveData::mWaveDataList, QList::size(), hal::WaveData::WaveData(), and hal::WaveDataList::waveDataByNet().

◆ addWaves()

void hal::WaveDataGroup::addWaves ( const QVector< WaveData * > & wds )

virtual

Definition at line 1110 of file wave_data.cpp.

References QList::append(), mGroupList, recalcData(), restoreIndex(), and QVector::toList().

Referenced by hal::WaveTreeModel::addWaves().

◆ bits()

int hal::WaveDataGroup::bits ( ) const

overridevirtual

Reimplemented from hal::WaveData.

Definition at line 1083 of file wave_data.cpp.

References mGroupList, and QList::size().

Referenced by addNet(), and hal::WaveFormPainted::generateGroup().

◆ childAt()

WaveData * hal::WaveDataGroup::childAt ( int inx ) const

virtual

Definition at line 1062 of file wave_data.cpp.

References QList::at(), mGroupList, and QList::size().

Referenced by hal::WaveTreeModel::dropMimeData(), hal::WaveTreeModel::handleGroupAboutToBeRemoved(), hal::WaveTreeModel::item(), hal::WaveTreeModel::parent(), and hal::WaveTreeModel::removeGroup().

◆ childIndex()

int hal::WaveDataGroup::childIndex ( WaveData * wd ) const

virtual

Definition at line 1068 of file wave_data.cpp.

References mIndex.

Referenced by hal::WaveTreeModel::handleGroupAboutToBeRemoved(), hal::WaveTreeModel::handleGroupRenamed(), replaceChild(), and updateWaveData().

◆ children()

QList< WaveData * > hal::WaveDataGroup::children ( ) const

virtual

Definition at line 1047 of file wave_data.cpp.

References mGroupList.

Referenced by hal::WaveData::get_events(), hal::WaveTreeModel::indexes(), hal::WaveData::neighborTransition(), hal::WaveTreeModel::persist(), hal::WaveTreeModel::restore(), hal::WaveLoaderThread::run(), hal::WaveLoaderBackbone::run(), and hal::WaveTreeModel::waveDataIndexSet().

◆ childrenWaveIndex()

QList< int > hal::WaveDataGroup::childrenWaveIndex ( ) const

Definition at line 1052 of file wave_data.cpp.

References QList::append(), mGroupList, hal::WaveData::mWaveDataList, and hal::WaveDataList::waveIndexByNetId().

Referenced by hal::WaveFormPainted::generateGroup().

◆ get_waveforms()

std::vector< WaveData * > hal::WaveDataGroup::get_waveforms ( ) const

Definition at line 1004 of file wave_data.cpp.

References mGroupList.

Referenced by hal::PYBIND11_PLUGIN(), and hal::NetlistSimulatorController::set_input().

◆ hasNetId()

bool hal::WaveDataGroup::hasNetId ( u32 id ) const

virtual

Definition at line 1078 of file wave_data.cpp.

References mIndex.

◆ insert()

void hal::WaveDataGroup::insert	(	int	inx,
		WaveData *	wd
	)

virtual

Definition at line 1100 of file wave_data.cpp.

References QList::append(), QList::insert(), mGroupList, recalcData(), restoreIndex(), and QList::size().

Referenced by hal::WaveDataList::addWavesToGroup(), hal::WaveTreeModel::insertExisting(), and hal::WaveTreeModel::insertItem().

◆ intValue()

int hal::WaveDataGroup::intValue ( double t ) const

overridevirtual

Reimplemented from hal::WaveData.

Definition at line 1205 of file wave_data.cpp.

References mGroupList, and QList::size().

◆ isEmpty()

virtual bool hal::WaveDataGroup::isEmpty ( ) const

inlinevirtual

Definition at line 350 of file wave_data.h.

References QList::isEmpty(), and mGroupList.

Referenced by hal::WaveTreeModel::handleGroupAboutToBeRemoved().

◆ loadPolicy()

WaveData::LoadPolicy hal::WaveDataGroup::loadPolicy ( ) const

overridevirtual

Reimplemented from hal::WaveData.

Definition at line 1125 of file wave_data.cpp.

References hal::WaveData::LoadAllData, hal::WaveData::LoadTimeframe, mGroupList, and hal::WaveData::TooBigToLoad.

◆ netIndex()

int hal::WaveDataGroup::netIndex ( u32 id ) const

virtual

Definition at line 1073 of file wave_data.cpp.

References mIndex.

Referenced by hal::WaveTreeModel::handleWaveAddedToGroup().

◆ recalcData()

void hal::WaveDataGroup::recalcData ( )

virtual

Reimplemented in hal::WaveDataRoot.

Definition at line 1144 of file wave_data.cpp.

References QList::at(), QMap::clear(), QMap::constBegin(), QMap::constEnd(), hal::WaveData::data(), hal::WaveDataList::emitGroupUpdated(), hal::WaveData::fileSize(), QMultiMap::insert(), QMap::insert(), QList::isEmpty(), QMap::iterator::key(), QMap::keys(), hal::WaveData::loadPolicy(), hal::WaveData::loadSaleae(), hal::WaveData::mData, hal::WaveData::mDirty, mGroupList, hal::WaveData::mWaveDataList, QMap::size(), QList::size(), hal::WaveDataList::timeFrame(), hal::WaveData::TooBigToLoad, hal::undef, and QMap::value().

Referenced by addWaves(), hal::WaveDataList::addWavesToGroup(), hal::WaveItem::cursorValue(), insert(), hal::WaveTreeModel::insertExisting(), hal::WaveTreeModel::insertGroup(), hal::WaveTreeModel::insertItem(), remove_waveform(), removeAt(), hal::WaveTreeModel::removeItemFromHash(), replaceChild(), and updateWaveData().

◆ remove_waveform()

void hal::WaveDataGroup::remove_waveform ( WaveData * wd )

Definition at line 993 of file wave_data.cpp.

References hal::WaveDataList::emitWaveRemovedFromGroup(), hal::WaveData::id(), mIndex, hal::WaveData::mWaveDataList, recalcData(), removeAt(), restoreIndex(), and hal::WaveDataList::waveIndexByNetId().

Referenced by hal::PYBIND11_PLUGIN().

◆ removeAt()

WaveData * hal::WaveDataGroup::removeAt ( int inx )

virtual

Definition at line 1090 of file wave_data.cpp.

References QList::at(), mGroupList, recalcData(), QList::removeAt(), restoreIndex(), and QList::size().

Referenced by hal::WaveTreeModel::handleGroupAboutToBeRemoved(), remove_waveform(), and hal::WaveTreeModel::removeItemFromHash().

◆ replaceChild()

void hal::WaveDataGroup::replaceChild ( WaveData * wd )

virtual

Definition at line 1011 of file wave_data.cpp.

References childIndex(), mGroupList, and recalcData().

◆ restoreIndex()

void hal::WaveDataGroup::restoreIndex ( )

Definition at line 1019 of file wave_data.cpp.

References hal::SaleaeDirectoryComposedEntry::add_child(), hal::SaleaeDirectory::add_or_replace_composed(), hal::WaveData::get_name(), hal::SaleaeDirectoryNetEntry::Group, mGroupList, mIndex, hal::WaveData::mWaveDataList, hal::WaveDataList::saleaeDirectory(), and hal::gate_library_manager::save().

Referenced by addWaves(), hal::WaveDataList::addWavesToGroup(), insert(), hal::WaveDataRoot::moveGroupPosition(), remove_waveform(), and removeAt().

◆ size()

virtual int hal::WaveDataGroup::size ( ) const

inlinevirtual

Definition at line 339 of file wave_data.h.

References mGroupList, and QList::size().

◆ updateWaveData()

void hal::WaveDataGroup::updateWaveData ( WaveData * wd )

virtual

Definition at line 1117 of file wave_data.cpp.

References childIndex(), mGroupList, and recalcData().

Member Data Documentation

◆ mGroupList

QList<WaveData*> hal::WaveDataGroup::mGroupList

protected

Definition at line 330 of file wave_data.h.

Referenced by addNet(), addWaves(), bits(), childAt(), children(), childrenWaveIndex(), hal::WaveDataRoot::clearAll(), hal::WaveDataRoot::dump(), get_waveforms(), insert(), intValue(), isEmpty(), loadPolicy(), hal::WaveDataRoot::moveGroupPosition(), recalcData(), removeAt(), replaceChild(), restoreIndex(), size(), updateWaveData(), and WaveDataGroup().

◆ mIndex

QHash<WaveDataGroupIndex,int> hal::WaveDataGroup::mIndex

protected

Definition at line 332 of file wave_data.h.

Referenced by addNet(), childIndex(), hasNetId(), netIndex(), remove_waveform(), restoreIndex(), and WaveDataGroup().

The documentation for this class was generated from the following files:

plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data.h
plugins/simulator/netlist_simulator_controller/src/wave_data.cpp
