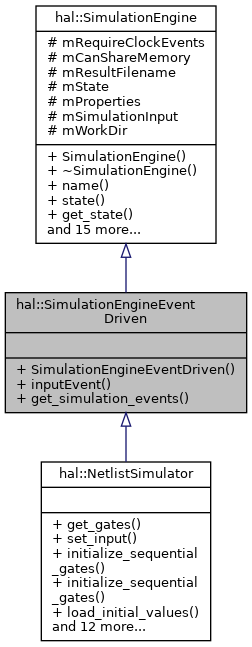

Inheritance diagram for hal::SimulationEngineEventDriven:

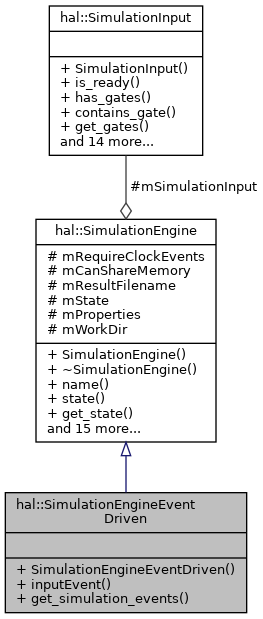

Collaboration diagram for hal::SimulationEngineEventDriven:

Public Member Functions
	SimulationEngineEventDriven (const std::string &nam)

virtual bool	inputEvent (const SimulationInputNetEvent &netEv)=0

virtual std::vector< WaveEvent >	get_simulation_events (u32 netId) const

Public Member Functions inherited from hal::SimulationEngine
	SimulationEngine (const std::string &nam)

virtual	~SimulationEngine ()

std::string	name () const

State	state () const

int	get_state () const

std::string	get_working_directory () const

void	set_working_directory (const std::string &workDir)

bool	clock_events_required () const

bool	can_share_memory () const

bool	install_saleae_parser (std::string dirname) const

virtual void	setResultFilename (const std::string filename)

std::string	get_result_filename () const

virtual bool	finalize ()

virtual void	failed ()

virtual void	set_engine_property (const std::string &key, const std::string &value)

virtual std::string	get_engine_property (const std::string &key)

virtual const std::unordered_map< std::string, std::string > &	get_engine_properties () const

virtual SimulationInput *	get_simulation_input () const

Additional Inherited Members
Public Types inherited from hal::SimulationEngine
enum	State { Failed = -1 , Done = 0 , Running = 1 , Preparing = 2 }

Protected Attributes inherited from hal::SimulationEngine
bool	mRequireClockEvents

bool	mCanShareMemory

std::string	mResultFilename

State	mState

std::unordered_map< std::string, std::string >	mProperties

SimulationInput *	mSimulationInput

std::string	mWorkDir

Detailed Description

The base class for simulation engines that run inside HAL and produce their events directly.

Definition at line 228 of file simulation_engine.h.

Constructor & Destructor Documentation

hal::SimulationEngineEventDriven::SimulationEngineEventDriven ( const std::string & nam )

Definition at line 79 of file simulation_engine.cpp.

std::vector< WaveEvent > hal::SimulationEngineEventDriven::get_simulation_events ( u32 netId ) const

virtual

Get vector of simulated events for net

Parameters

[in] netId - The net for which events where simulated

Definition at line 84 of file simulation_engine.cpp.

virtual bool hal::SimulationEngineEventDriven::inputEvent ( const SimulationInputNetEvent & netEv )

pure virtual

Must be implemented by derived class

Passes an event to engine to trigger simulation

Parameters

[in] netEv input event asigning input values (0,1,X,Z) for nets and providing number of cycles to simulate

The documentation for this class was generated from the following files:

plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/simulation_engine.h
plugins/simulator/netlist_simulator_controller/src/simulation_engine.cpp
