#include </home/runner/work/hal/hal/plugins/simulator/hal_simulator/include/netlist_simulator/netlist_simulator.h>

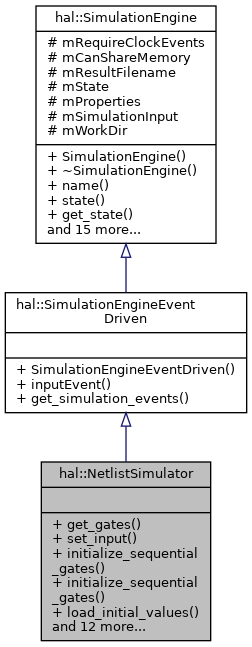

Inheritance diagram for hal::NetlistSimulator:

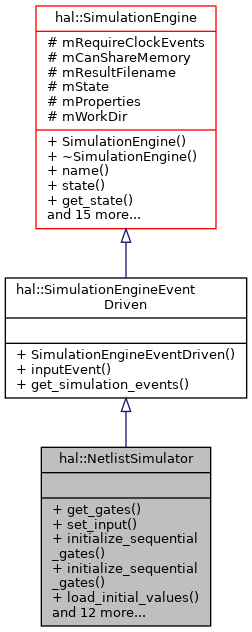

Collaboration diagram for hal::NetlistSimulator:

Public Member Functions
const std::unordered_set< Gate * > &	get_gates () const

void	set_input (const Net *net, BooleanFunction::Value value)

void	initialize_sequential_gates (const std::function< bool(const Gate *)> &filter=nullptr)

void	initialize_sequential_gates (BooleanFunction::Value value, const std::function< bool(const Gate *)> &filter=nullptr)

void	load_initial_values (BooleanFunction::Value value)

void	load_initial_values_from_netlist ()

void	initialize ()

void	simulate (u64 picoseconds)

SimulationInput *	get_simulation_input () const override

void	reset ()

void	set_simulation_state (const Simulation &state)

const Simulation &	get_simulation_state () const

void	set_iteration_timeout (u64 iterations)

u64	get_simulation_timeout () const

bool	generate_vcd (const std::filesystem::path &path, u32 start_time, u32 end_time, std::set< const Net * > nets={}) const

std::vector< WaveEvent >	get_simulation_events (u32 netId) const override

bool	inputEvent (const SimulationInputNetEvent &netEv) override

Public Member Functions inherited from hal::SimulationEngineEventDriven
	SimulationEngineEventDriven (const std::string &nam)

Public Member Functions inherited from hal::SimulationEngine
	SimulationEngine (const std::string &nam)

virtual	~SimulationEngine ()

std::string	name () const

State	state () const

int	get_state () const

std::string	get_working_directory () const

void	set_working_directory (const std::string &workDir)

bool	clock_events_required () const

bool	can_share_memory () const

bool	install_saleae_parser (std::string dirname) const

virtual void	setResultFilename (const std::string filename)

std::string	get_result_filename () const

virtual bool	finalize ()

virtual void	failed ()

virtual void	set_engine_property (const std::string &key, const std::string &value)

virtual std::string	get_engine_property (const std::string &key)

virtual const std::unordered_map< std::string, std::string > &	get_engine_properties () const

Friends
class	NetlistSimulatorFactory

class	NetlistSimulatorPlugin

Additional Inherited Members
Public Types inherited from hal::SimulationEngine
enum	State { Failed = -1 , Done = 0 , Running = 1 , Preparing = 2 }

Protected Attributes inherited from hal::SimulationEngine
bool	mRequireClockEvents

bool	mCanShareMemory

std::string	mResultFilename

State	mState

std::unordered_map< std::string, std::string >	mProperties

SimulationInput *	mSimulationInput

std::string	mWorkDir

Detailed Description

HAL's built-in event-driven simulation engine.

Definition at line 45 of file netlist_simulator.h.

Member Function Documentation

◆ generate_vcd()

bool hal::NetlistSimulator::generate_vcd	(	const std::filesystem::path &	path,
		u32	start_time,
		u32	end_time,
		std::set< const Net * >	nets = `{}`
	)		const

Generates the a VCD file for parts the simulated netlist.

Parameters

[in]	path	- The path to the VCD file.
[in]	start_time	- Start of the timeframe to write to the file (in picoseconds).
[in]	end_time	- End of the timeframe to write to the file (in picoseconds).
[in]	nets	- Nets to include in the VCD file.

Returns: true if the file gerneration was successful, false otherwise.

Definition at line 568 of file netlist_simulator.cpp.

References log_error, and net.

Referenced by hal::PYBIND11_PLUGIN().

◆ get_gates()

const std::unordered_set<Gate*>& hal::NetlistSimulator::get_gates ( ) const

Get all gates that are in the simulation set.

Returns: The simulation set.

◆ get_simulation_events()

std::vector< WaveEvent > hal::NetlistSimulator::get_simulation_events ( u32 netId ) const

overridevirtual

Get vector of simulated events for net

Parameters

[in] netId - The net for which events where simulated

Returns: Vector of events

Reimplemented from hal::SimulationEngineEventDriven.

Definition at line 230 of file netlist_simulator.cpp.

References hal::Simulation::get_events_by_net_id().

◆ get_simulation_input()

SimulationInput* hal::NetlistSimulator::get_simulation_input ( ) const

inlineoverridevirtual

Get simulation input

Returns: Pointer to input instance

Reimplemented from hal::SimulationEngine.

Definition at line 116 of file netlist_simulator.h.

References hal::SimulationEngine::mSimulationInput.

◆ get_simulation_state()

const Simulation & hal::NetlistSimulator::get_simulation_state ( ) const

Get the current simulation state.

Returns: The current simulation state.

Definition at line 215 of file netlist_simulator.cpp.

Referenced by hal::PYBIND11_PLUGIN().

◆ get_simulation_timeout()

u64 hal::NetlistSimulator::get_simulation_timeout ( ) const

Get the current iteration timeout value.

Returns: The iteration timeout.

Definition at line 225 of file netlist_simulator.cpp.

Referenced by hal::PYBIND11_PLUGIN().

◆ initialize()

void hal::NetlistSimulator::initialize ( )

Initialize the simulation. No additional gates or clocks can be added after this point.

Definition at line 248 of file netlist_simulator.cpp.

References hal::WaveEvent::affected_net, log_error, measure_block_time, net, hal::WaveEvent::new_value, pins, and hal::WaveEvent::time.

Referenced by hal::PYBIND11_PLUGIN().

◆ initialize_sequential_gates() [1/2]

void hal::NetlistSimulator::initialize_sequential_gates	(	BooleanFunction::Value	value,
		const std::function< bool(const Gate *)> &	filter = `nullptr`
	)

Configure the sequential gates matching the (optional) user-defined filter condition with the specified value. Schedules the respective gates for initialization, the actual configuration is applied during initialization of the simulator. This function can only be called before the simulation has started.

Parameters

[in]	value	- The value to initialize the selected gates with.
[in]	filter	- The optional filter to be applied before initialization.

Definition at line 63 of file netlist_simulator.cpp.

References log_error.

◆ initialize_sequential_gates() [2/2]

void hal::NetlistSimulator::initialize_sequential_gates ( const std::function< bool(const Gate *)> & filter = nullptr )

Configure the sequential gates matching the (optional) user-defined filter condition with initialization data specified within the netlist. Schedules the respective gates for initialization, the actual configuration is applied during initialization of the simulator. This function can only be called before the simulation has started.

Parameters

[in] filter - The optional filter to be applied before initialization.

Definition at line 50 of file netlist_simulator.cpp.

References log_error.

Referenced by hal::PYBIND11_PLUGIN().

◆ inputEvent()

bool hal::NetlistSimulator::inputEvent ( const SimulationInputNetEvent & netEv )

overridevirtual

Must be implemented by derived class

Passes an event to engine to trigger simulation

Parameters

[in] netEv input event asigning input values (0,1,X,Z) for nets and providing number of cycles to simulate

Returns: true if event was handled successfully, false otherwise

Implements hal::SimulationEngineEventDriven.

Definition at line 235 of file netlist_simulator.cpp.

References hal::SimulationInputNetEvent::get_simulation_duration().

◆ load_initial_values()

void hal::NetlistSimulator::load_initial_values ( BooleanFunction::Value value )

Deprecated:: DEPRECATED
Load the specified initial value into the current state of all sequential elements.

Parameters

[in] value - The initial value to load.

Definition at line 76 of file netlist_simulator.cpp.

References hal::WaveEvent::affected_net, hal::WaveEvent::new_value, hal::WaveEvent::time, and hal::simulation_utils::toggle().

Referenced by hal::PYBIND11_PLUGIN().

◆ load_initial_values_from_netlist()

void hal::NetlistSimulator::load_initial_values_from_netlist ( )

Deprecated:: DEPRECATED
Load the initial value specified within the netlist file into the current state of all sequential elements. This is especially relevant for FPGA netlists, since these may provide initial values to load on startup.

Definition at line 118 of file netlist_simulator.cpp.

References hal::WaveEvent::affected_net, hal::InitComponent::get_init_category(), hal::InitComponent::get_init_identifiers(), hal::GateType::get_name(), hal::InitComponent::get_type(), log_error, hal::WaveEvent::new_value, hal::WaveEvent::time, and hal::simulation_utils::toggle().

Referenced by hal::PYBIND11_PLUGIN().

◆ reset()

void hal::NetlistSimulator::reset ( )

Reset the simulator state, i.e., treat all signals as unknown. Does not remove gates/nets from the simulation set.

Definition at line 200 of file netlist_simulator.cpp.

Referenced by hal::PYBIND11_PLUGIN().

◆ set_input()

void hal::NetlistSimulator::set_input	(	const Net *	net,
		BooleanFunction::Value	value
	)

Set the signal for a specific wire to control input signals between simulation cycles.

Parameters

[in]	net	- The net to set a signal value for.
[in]	value	- The value to set.

Definition at line 27 of file netlist_simulator.cpp.

References hal::WaveEvent::affected_net, log_error, net, hal::WaveEvent::new_value, and hal::WaveEvent::time.

Referenced by hal::PYBIND11_PLUGIN().

◆ set_iteration_timeout()

void hal::NetlistSimulator::set_iteration_timeout ( u64 iterations )

Set the iteration timeout, i.e., the maximum number of events processed for a single point in time. Useful to abort in case of infinite loops. A value of 0 disables the timeout.

Parameters

[in] iterations - The iteration timeout.

Definition at line 220 of file netlist_simulator.cpp.

Referenced by hal::PYBIND11_PLUGIN().

◆ set_simulation_state()

void hal::NetlistSimulator::set_simulation_state ( const Simulation & state )

Set the simulator state, i.e., net signals, to a given state. Does not influence gates/nets added to the simulation set.

Parameters

[in] state - The state to apply.

Definition at line 210 of file netlist_simulator.cpp.

References hal::state.

Referenced by hal::PYBIND11_PLUGIN().

◆ simulate()

void hal::NetlistSimulator::simulate ( u64 picoseconds )

Simulate for a specific period, advancing the internal state. Automatically initializes the simulation if 'initialize' has not yet been called. Use 'set_input' to control specific signals.

Parameters

[in] picoseconds - The duration to simulate.

Definition at line 188 of file netlist_simulator.cpp.

References hal::initialize().

Referenced by hal::PYBIND11_PLUGIN().

Friends And Related Function Documentation

◆ NetlistSimulatorFactory

friend class NetlistSimulatorFactory

friend

Definition at line 47 of file netlist_simulator.h.

◆ NetlistSimulatorPlugin

friend class NetlistSimulatorPlugin

friend

Definition at line 180 of file netlist_simulator.h.

The documentation for this class was generated from the following files:

plugins/simulator/hal_simulator/include/netlist_simulator/netlist_simulator.h
plugins/simulator/hal_simulator/src/netlist_simulator.cpp
