#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/simulation_engine.h>

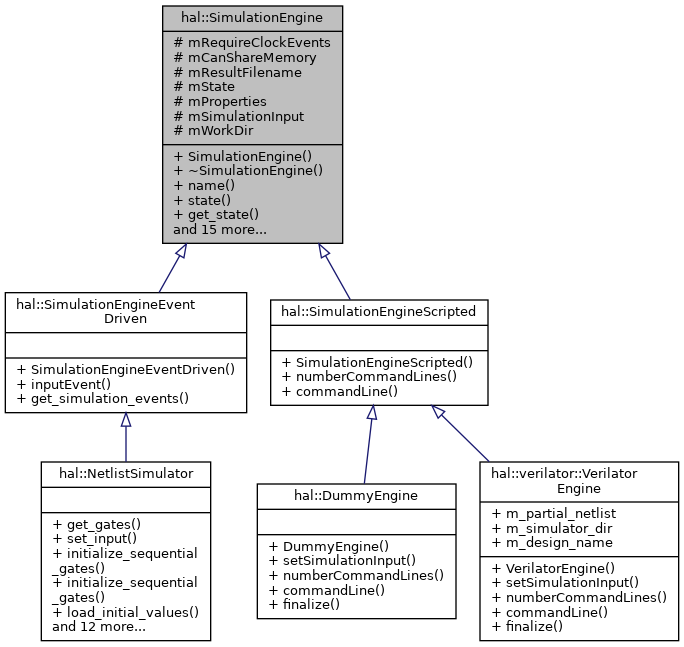

Inheritance diagram for hal::SimulationEngine:

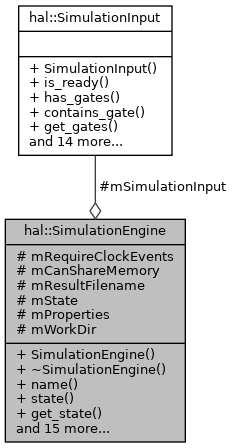

Collaboration diagram for hal::SimulationEngine:

Public Types
enum	State { Failed = -1 , Done = 0 , Running = 1 , Preparing = 2 }

Public Member Functions
	SimulationEngine (const std::string &nam)

virtual	~SimulationEngine ()

std::string	name () const

State	state () const

int	get_state () const

std::string	get_working_directory () const

void	set_working_directory (const std::string &workDir)

bool	clock_events_required () const

bool	can_share_memory () const

bool	install_saleae_parser (std::string dirname) const

virtual bool	setSimulationInput (SimulationInput *simInput)=0

virtual void	setResultFilename (const std::string filename)

std::string	get_result_filename () const

virtual bool	run (NetlistSimulatorController controller, SimulationLogReceiver logReceiver=nullptr)=0

virtual bool	finalize ()

virtual void	failed ()

virtual void	set_engine_property (const std::string &key, const std::string &value)

virtual std::string	get_engine_property (const std::string &key)

virtual const std::unordered_map< std::string, std::string > &	get_engine_properties () const

virtual SimulationInput *	get_simulation_input () const

Protected Attributes
bool	mRequireClockEvents

bool	mCanShareMemory

std::string	mResultFilename

State	mState

std::unordered_map< std::string, std::string >	mProperties

SimulationInput *	mSimulationInput

std::string	mWorkDir

Detailed Description

The base class for all simulation engines, which holds the name, working directory, and properties of an engine.

Definition at line 45 of file simulation_engine.h.

Member Enumeration Documentation

◆ State

enum hal::SimulationEngine::State

Enumerator
Failed
Done
Running
Preparing

Definition at line 50 of file simulation_engine.h.

Constructor & Destructor Documentation

◆ SimulationEngine()

hal::SimulationEngine::SimulationEngine ( const std::string & nam )

Definition at line 16 of file simulation_engine.cpp.

◆ ~SimulationEngine()

virtual hal::SimulationEngine::~SimulationEngine ( )

inlinevirtual

Definition at line 69 of file simulation_engine.h.

Member Function Documentation

◆ can_share_memory()

bool hal::SimulationEngine::can_share_memory ( ) const

inline

Tells the caller whether engine can share simulation results directly from memory. If not the caller will most likely ask to have a VCD result file created.

Returns: true if results can be read from memory, false otherwise.

Definition at line 124 of file simulation_engine.h.

References mCanShareMemory.

◆ clock_events_required()

bool hal::SimulationEngine::clock_events_required ( ) const

inline

Request clock change as regular net input event

Returns: true if clock events are required by engine, false otherwise

Definition at line 114 of file simulation_engine.h.

References mRequireClockEvents.

Referenced by hal::NetlistSimulatorController::run_simulation().

◆ failed()

void hal::SimulationEngine::failed ( )

virtual

Can be overwritten by derived class

Signals the engine that an essential step failed and execution is going to be aborted. Engine might want to do some final clean up.

Definition at line 37 of file simulation_engine.cpp.

References Failed, and mState.

Referenced by hal::SimulationThread::run().

◆ finalize()

bool hal::SimulationEngine::finalize ( )

virtual

Can be overwritten by derived class

Signals the engine that it is time for final steps (.e.g. writing VCD file) after simulation is done - that is: SimulationEngineEventDriven: all input events have been processed SimulationEngineScripted: all comands executed successfully

Returns: true if successful, false otherwise.

Reimplemented in hal::verilator::VerilatorEngine, and hal::DummyEngine.

Definition at line 31 of file simulation_engine.cpp.

References Done, and mState.

Referenced by hal::SimulationThread::run().

◆ get_engine_properties()

virtual const std::unordered_map<std::string,std::string>& hal::SimulationEngine::get_engine_properties ( ) const

inlinevirtual

Get all propertiess

Returns

Definition at line 216 of file simulation_engine.h.

References mProperties.

Referenced by hal::NetlistSimulatorController::persist().

◆ get_engine_property()

std::string hal::SimulationEngine::get_engine_property ( const std::string & key )

virtual

Get property which can be evaluated by engine

Parameters

key	property name

Returns: the property value, an empty string if the property is not set

Definition at line 69 of file simulation_engine.cpp.

References mProperties.

Referenced by hal::SimulationProcess::run(), hal::NetlistSimulatorController::run_simulation(), and hal::verilator::VerilatorEngine::setSimulationInput().

◆ get_result_filename()

std::string hal::SimulationEngine::get_result_filename ( ) const

inline

Getter for file name of results as VCD

Returns: the file name

Definition at line 158 of file simulation_engine.h.

References mResultFilename.

◆ get_simulation_input()

virtual SimulationInput* hal::SimulationEngine::get_simulation_input ( ) const

inlinevirtual

Get simulation input

Returns: Pointer to input instance

Reimplemented in hal::NetlistSimulator.

Definition at line 222 of file simulation_engine.h.

References mSimulationInput.

◆ get_state()

int hal::SimulationEngine::get_state ( ) const

inline

State of the engine as integer

Returns: possible state values are Preparing = 2, Running = 1, Done = 0, Failed = -1

Definition at line 93 of file simulation_engine.h.

References mState.

Referenced by hal::PYBIND11_PLUGIN().

◆ get_working_directory()

std::string hal::SimulationEngine::get_working_directory ( ) const

The working directory. Directory is temporary and will be removed when controller gets deleted

Returns: directory path

Definition at line 21 of file simulation_engine.cpp.

References mWorkDir.

Referenced by hal::PYBIND11_PLUGIN(), hal::DummyEngine::setSimulationInput(), hal::verilator::VerilatorEngine::setSimulationInput(), and hal::SimulationProcess::SimulationProcess().

◆ install_saleae_parser()

bool hal::SimulationEngine::install_saleae_parser ( std::string dirname ) const

Copy header and source files so that saleae parser can be compiled into project

Parameters

[in] dirname - Target directory to copy files into.

Returns: true if files copied successfully, false otherwise

Definition at line 42 of file simulation_engine.cpp.

References QDir::absoluteFilePath(), QDir::exists(), hal::ff, QFileInfo::fileName(), QString::fromStdString(), QFile::open(), QIODevice::ReadOnly, QIODevice::write(), and QIODevice::WriteOnly.

◆ name()

std::string hal::SimulationEngine::name ( ) const

inline

Getter for enging name

Returns: name as std::string

Definition at line 75 of file simulation_engine.h.

Referenced by hal::NetlistSimulatorController::create_simulation_engine(), hal::NetlistSimulatorController::persist(), and hal::PYBIND11_PLUGIN().

◆ run()

virtual bool hal::SimulationEngine::run	(	NetlistSimulatorController *	controller,
		SimulationLogReceiver *	logReceiver = `nullptr`
	)

pure virtual

Must be implemented by derived class

Will be called by controller to start simulation.

Derived classes SimulationEngineEventDriven and SimulationEngineScripted will implement their own run handlers to start either a separate process or a thread

Returns: true if successful, false otherwise.

Referenced by hal::NetlistSimulatorController::run_simulation().

◆ set_engine_property()

void hal::SimulationEngine::set_engine_property	(	const std::string &	key,
		const std::string &	value
	)

virtual

Set property which can be evaluated by engine

Parameters

key	property name
value	property value

Definition at line 64 of file simulation_engine.cpp.

References mProperties.

Referenced by hal::NetlistSimulatorController::NetlistSimulatorController(), hal::PYBIND11_PLUGIN(), and hal::NetlistSimulatorController::run_simulation().

◆ set_working_directory()

void hal::SimulationEngine::set_working_directory ( const std::string & workDir )

Set the working directory. Method should be called by controller only after creating engine instance.

Parameters

[in] workDir The working directory (should be controller tmp directory)

Definition at line 26 of file simulation_engine.cpp.

References mWorkDir.

Referenced by hal::NetlistSimulatorController::create_simulation_engine().

◆ setResultFilename()

virtual void hal::SimulationEngine::setResultFilename ( const std::string filename )

inlinevirtual

Set the name of VCD result file. If set engine is requested to produce such a file upon finalize

Parameters

[in] filename - Name of the file to be created.

Definition at line 149 of file simulation_engine.h.

References mResultFilename.

◆ setSimulationInput()

virtual bool hal::SimulationEngine::setSimulationInput ( SimulationInput * simInput )

pure virtual

Must be implemented by derived class

Will be called by controller to pass all relevant information to setup the simulation

Parameters

[in] simInput the input

Returns: true if engine could be prepared successfully with given input, false otherwise.

Implemented in hal::verilator::VerilatorEngine, and hal::DummyEngine.

Referenced by hal::NetlistSimulatorController::run_simulation().

◆ state()

State hal::SimulationEngine::state ( ) const

inline

State of the engine

Returns: possible state values are Preparing, Running, Done, Failed

Definition at line 84 of file simulation_engine.h.

References mState.

Referenced by hal::SimulationThread::run().

Member Data Documentation

◆ mCanShareMemory

bool hal::SimulationEngine::mCanShareMemory

protected

Definition at line 60 of file simulation_engine.h.

Referenced by can_share_memory(), and hal::SimulationEngineEventDriven::SimulationEngineEventDriven().

◆ mProperties

std::unordered_map<std::string, std::string> hal::SimulationEngine::mProperties

protected

Definition at line 63 of file simulation_engine.h.

Referenced by get_engine_properties(), get_engine_property(), and set_engine_property().

◆ mRequireClockEvents

bool hal::SimulationEngine::mRequireClockEvents

protected

Definition at line 59 of file simulation_engine.h.

Referenced by clock_events_required(), and hal::verilator::VerilatorEngine::VerilatorEngine().

◆ mResultFilename

std::string hal::SimulationEngine::mResultFilename

protected

Definition at line 61 of file simulation_engine.h.

Referenced by hal::verilator::VerilatorEngine::finalize(), get_result_filename(), and setResultFilename().

◆ mSimulationInput

SimulationInput* hal::SimulationEngine::mSimulationInput

protected

Definition at line 64 of file simulation_engine.h.

Referenced by get_simulation_input(), hal::NetlistSimulator::get_simulation_input(), hal::DummyEngine::setSimulationInput(), and hal::verilator::VerilatorEngine::setSimulationInput().

◆ mState

State hal::SimulationEngine::mState

protected

Definition at line 62 of file simulation_engine.h.

Referenced by failed(), hal::DummyEngine::finalize(), finalize(), hal::verilator::VerilatorEngine::finalize(), get_state(), and state().

◆ mWorkDir

std::string hal::SimulationEngine::mWorkDir

protected

Definition at line 65 of file simulation_engine.h.

Referenced by get_working_directory(), and set_working_directory().

The documentation for this class was generated from the following files:

plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/simulation_engine.h
plugins/simulator/netlist_simulator_controller/src/simulation_engine.cpp
