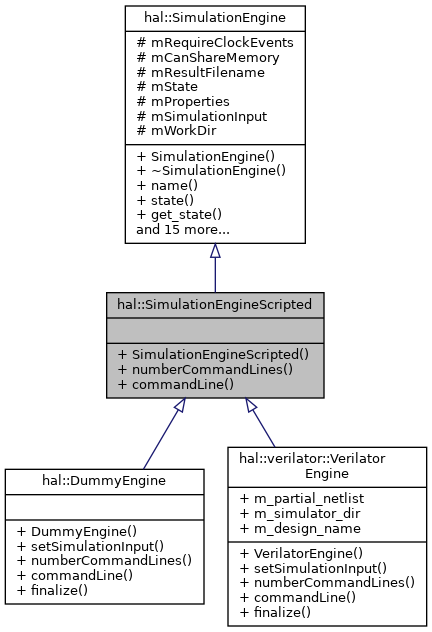

Inheritance diagram for hal::SimulationEngineScripted:

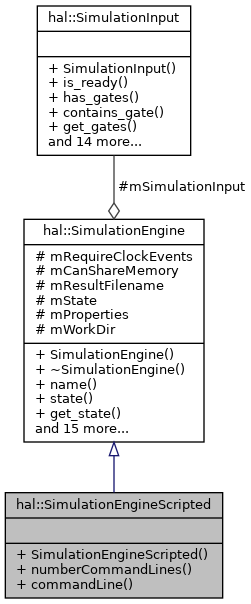

Collaboration diagram for hal::SimulationEngineScripted:

Public Member Functions
	SimulationEngineScripted (const std::string &nam)

virtual int	numberCommandLines () const =0

virtual std::vector< std::string >	commandLine (int lineIndex) const =0

Public Member Functions inherited from hal::SimulationEngine
	SimulationEngine (const std::string &nam)

virtual	~SimulationEngine ()

std::string	name () const

State	state () const

int	get_state () const

std::string	get_working_directory () const

void	set_working_directory (const std::string &workDir)

bool	clock_events_required () const

bool	can_share_memory () const

bool	install_saleae_parser (std::string dirname) const

virtual bool	setSimulationInput (SimulationInput *simInput)=0

virtual void	setResultFilename (const std::string filename)

std::string	get_result_filename () const

virtual bool	finalize ()

virtual void	failed ()

virtual void	set_engine_property (const std::string &key, const std::string &value)

virtual std::string	get_engine_property (const std::string &key)

virtual const std::unordered_map< std::string, std::string > &	get_engine_properties () const

virtual SimulationInput *	get_simulation_input () const

Additional Inherited Members
Public Types inherited from hal::SimulationEngine
enum	State { Failed = -1 , Done = 0 , Running = 1 , Preparing = 2 }

Protected Attributes inherited from hal::SimulationEngine
bool	mRequireClockEvents

bool	mCanShareMemory

std::string	mResultFilename

State	mState

std::unordered_map< std::string, std::string >	mProperties

SimulationInput *	mSimulationInput

std::string	mWorkDir

Detailed Description

The base class for simulation engines that run as external processes driven by a sequence of shell commands.

Definition at line 257 of file simulation_engine.h.

Constructor & Destructor Documentation

hal::SimulationEngineScripted::SimulationEngineScripted ( const std::string & nam )

inline

Definition at line 262 of file simulation_engine.h.

virtual std::vector<std::string> hal::SimulationEngineScripted::commandLine ( int lineIndex ) const

pure virtual

Must be implemented by derived class

Returns command and argument to be executed

Parameters

[in] lineIndex the line index of the script starting from 0

Returns: first element is command to be executed, subsequent elements are arguments

virtual int hal::SimulationEngineScripted::numberCommandLines ( ) const

pure virtual

Must be implemented by derived class

Returns the information how many command lines are to be executed

The documentation for this class was generated from the following files:

plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/simulation_engine.h
plugins/simulator/netlist_simulator_controller/src/simulation_engine.cpp
