#include </home/runner/work/hal/hal/plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data.h>

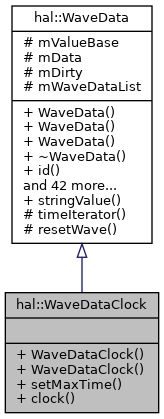

Inheritance diagram for hal::WaveDataClock:

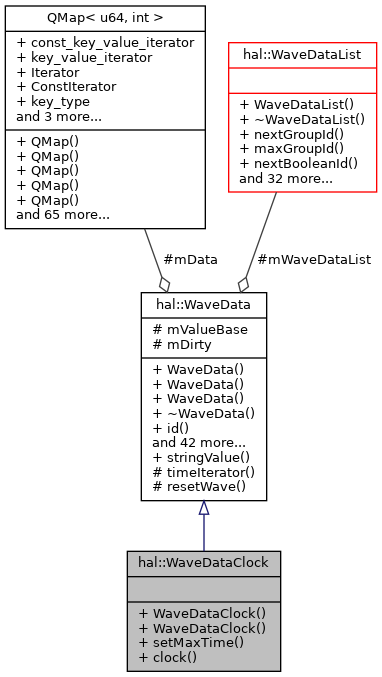

Collaboration diagram for hal::WaveDataClock:

Public Member Functions
	WaveDataClock (const Net *n, const SimulationInput::Clock &clk, u64 tmax)

	WaveDataClock (const Net *n, int start, u64 period, u64 tmax)

void	setMaxTime (u64 tmax)

SimulationInput::Clock	clock () const

Public Member Functions inherited from hal::WaveData
	WaveData (const WaveData &other)

	WaveData (u32 id_, const QString &nam, NetType tp=RegularNet, const QMap< u64, int > &dat=QMap< u64, int >())

	WaveData (const Net *n, NetType tp=RegularNet)

virtual	~WaveData ()

u32	id () const

QString	name () const

NetType	netType () const

virtual int	bits () const

bool	isDirty () const

const QMap< u64, int > &	data () const

int	fileIndex () const

u64	fileSize () const

int	valueBase () const

std::string	fileName () const

SaleaeDirectoryNetEntry::Type	composedType () const

void	setId (u32 id_)

bool	rename (const QString &nam)

void	setBits (int bts)

void	setDirty (bool dty)

void	setFileIndex (int saleaIndex)

void	setFileSize (u64 siz)

void	setTimeframeSize (u64 siz)

void	setWaveDataList (WaveDataList *wdList)

virtual LoadPolicy	loadPolicy () const

int	dataIndex () const

virtual u64	neighborTransition (double t, bool next) const

void	loadDataUnlessAlreadyLoaded ()

bool	loadSaleae (const WaveDataTimeframe &tframe=WaveDataTimeframe())

void	saveSaleae ()

void	setData (const QMap< u64, int > &dat)

virtual int	intValue (double t) const

int	get_value_at (u64 t)

std::string	get_name () const

std::vector< std::pair< u64, int > >	get_events (u64 t0=0) const

std::vector< std::pair< u64, int > >	get_triggered_events (const WaveDataTrigger *wdTrig, u64 t0=0)

u64	maxTime () const

void	clear ()

void	insert (u64 t, int val)

void	insertBooleanValueWithoutSync (u64 t, BooleanFunction::Value bval)

QString	strValue (int val) const

QString	strValue (double t) const

QString	strValue (const QMap< u64, int >::const_iterator &it) const

void	setValueBase (int bas)

bool	isEqual (const WaveData &other, int tolerance=0) const

bool	hasSubscriber () const

void	addSubscriber ()

void	removeSubscriber ()

Additional Inherited Members
Public Types inherited from hal::WaveData
enum	NetType { RegularNet , InputNet , OutputNet , ClockNet , BooleanNet , TriggerTime , NetGroup }

enum	LoadPolicy { TooBigToLoad , LoadTimeframe , LoadAllData }

Static Public Member Functions inherited from hal::WaveData
static QString	stringValue (int val, int bits, int base)

Protected Member Functions inherited from hal::WaveData
QMap< u64, int >::const_iterator	timeIterator (double t) const

void	resetWave ()

Protected Attributes inherited from hal::WaveData
int	mValueBase

QMap< u64, int >	mData

bool	mDirty

WaveDataList *	mWaveDataList

Detailed Description

The waveform of a clock net, which is generated from a period rather than read from simulation results.

Definition at line 153 of file wave_data.h.

Constructor & Destructor Documentation

◆ WaveDataClock() [1/2]

hal::WaveDataClock::WaveDataClock	(	const Net *	n,
		const SimulationInput::Clock &	clk,
		u64	tmax
	)

Definition at line 17 of file wave_data.cpp.

◆ WaveDataClock() [2/2]

hal::WaveDataClock::WaveDataClock	(	const Net *	n,
		int	start,
		u64	period,
		u64	tmax
	)

Definition at line 23 of file wave_data.cpp.

References hal::SimulationInput::Clock::clock_net, hal::SimulationInput::Clock::start_at_zero, and hal::SimulationInput::Clock::switch_time.

Member Function Documentation

◆ clock()

SimulationInput::Clock hal::WaveDataClock::clock ( ) const

inline

Definition at line 162 of file wave_data.h.

◆ setMaxTime()

void hal::WaveDataClock::setMaxTime ( u64 tmax )

Definition at line 31 of file wave_data.cpp.

References hal::WaveData::resetWave().

Referenced by hal::WaveDataList::updateClocks().

The documentation for this class was generated from the following files:

plugins/simulator/netlist_simulator_controller/include/netlist_simulator_controller/wave_data.h
plugins/simulator/netlist_simulator_controller/src/wave_data.cpp
